60 Inch Ionizing Bar for Static Elimination in Industrial Environments
60 Inch Ionizing Bar for Static Elimination in Industrial Environments
SKU:STA-ab4c38
Rapidly eliminate static electricity to prevent dust attraction and product damage with our 60in Ionizing Bar. Compact, efficient, and UL-rated for industrial use.
Regular price
$230.00
Regular price
Sale price
$230.00
Unit price
per
Initiate Order
60 Inch Ionizing Bar for Static Elimination in Industrial Environments
$230.00
Quantity: 1
Claim Your Seller Account
60 Inch Ionizing Bar for Static Elimination in Industrial Environments
$230.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

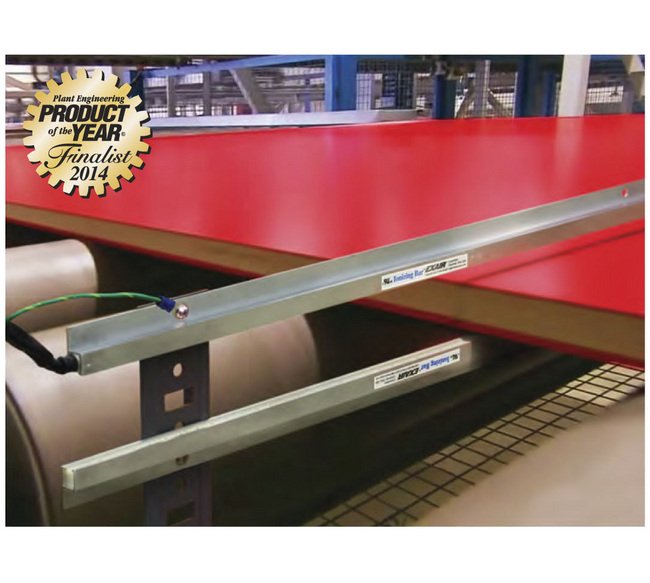

The 60-inch Ionizing Bar by EXAIR is a reliable solution for eliminating static electricity on paper, film, and plastics, preventing dust attraction and product damage. This electrically powered bar emits a high concentration of positive and negative ions, ensuring rapid static decay within a 2-inch range. With a rugged design suitable for industrial environments, stainless steel emitters, and UL-rated components, this Ionizing Bar offers shockless and effective static elimination, enhancing operational efficiency and product quality.
Product Specifications
Specifications Advantages
Compact | Easy to Install, Equipped with Mounting Flange | Effective up to 2 inch (51 mm) | Fully Assembled | Low Cost | Low Maintenance | Rapid Static Decay | Rugged Design for Industrial Environments | Shockless, Non-Radioactive
Specifications Applications
Bag Making - Form and Fill | Converting Machinery | Hard to Reach Places or Obstructed Surfaces | Labeling | Neutralizing Shrink Wrap | Neutralizing Slitting Operations | Packaging | Product Moving at High Speeds | Screen Printing | Sheet Fed and Web Presses | Surfaces with an Extremely High Charge | Textiles
Specifications Certifications
Ionizing Bars are UL Component Recognized to U.S. and Canadian safety standards. Power supplies are Underwriters Laboratories (UL) Listed to U.S. and Canadian safety standards, and are European Conformity (CE) and Restriction Of Hazardous Substances (RoHs) Compliant.
Specifications Emitters Material
Stainless Steel
Specifications Included Accessories
5' (1.52 m) Length of Shielded Cable | Assembled Connector
Specifications Ionizing Bar Channel Material
Aluminum
Specifications Length
60 in | 1524 mm
Specifications Maximum Ambient Temperature
165 ºF | 74 ºC
Specifications Maximum Distance
2 in | 51 mm
Specifications Plastic Parts Grading
UL rated 94 HB
Specifications Power Supply
5 kVrms, 5 milliamperes (maximum) power supply.
Specifications Problems Solved With Static Eliminators
Dust clinging to product | Hazardous sparks or shocks | Materials tearing, jamming or curling | Product clinging to itself, rollers, machine beds or frames | Sheet feeding problems
