60 Inch Open Exhaust ESD Acrylic Filtered Glovebox
60 Inch Open Exhaust ESD Acrylic Filtered Glovebox
SKU:230-3d203a
Control particulates with precision in the 2300 Series 60 Inch Open Exhaust Filtered Glovebox. ESD acrylic material ensures a clean, static-free environment.
Regular price
$6,499.99
Regular price
Sale price
$6,499.99
Unit price
per
Initiate Order
60 Inch Open Exhaust ESD Acrylic Filtered Glovebox
$6,499.99
Quantity: 1
Claim Your Seller Account
60 Inch Open Exhaust ESD Acrylic Filtered Glovebox
$6,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

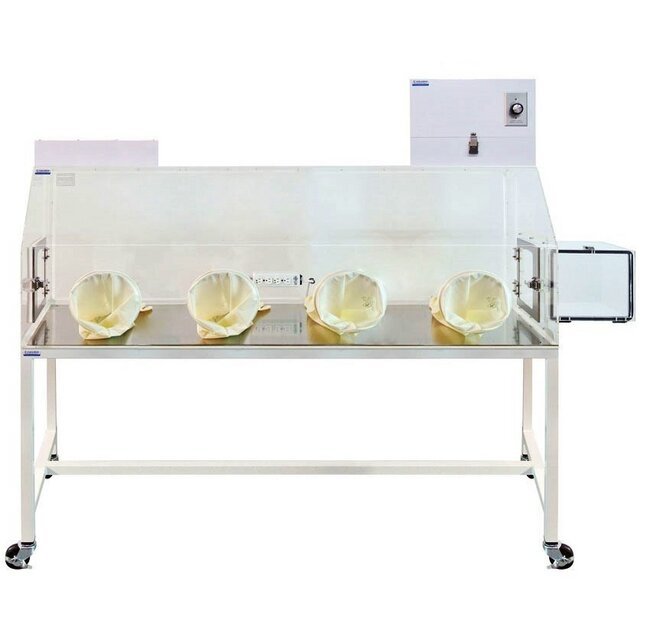

The 2300 Series 60 Inch Overall Width Four Port Electrostatic Discharge (ESD) Acrylic Open Exhaust Filtered Glovebox is designed for precise particulate control in laboratory settings. This glovebox features static-dissipative acrylic material, eliminating static charges and maintaining a clean environment. With a large chamber volume, 4 glove ports, and options for secondary filters and hospital-grade power strip, it ensures efficient and safe operation. The included blower module, stainless steel work surface, and Magnehelic gauge enhance user experience, making it a reliable solution for institutional and government buyers.
Product Specifications
Additional Information Additional Information
Blower module, adjustable speed, backward curved impeller 480-CFM, permanently lubricated, automatic reset thermal overload protection, 120VAC, 60Hz, UL Listed; CSA Certified; Enclosed in a Polypropylene Housing.Primary HEPA filter is 99.97% efficient at trapping particles as small as 0.3 microns. Filter media is ultra-fine glass fiber and is 3" thick. The maximum temperature is 180° and the filter meets UL Class 2 flame retardant requirements.
Options Options
Secondary HEPA filter is 99.97% efficient at trapping particles as small as 0.3 microns.ULPA filter is 99.999% efficient at trapping particles as small as 0.12 microns. The 3" thick filter removes contaminants from the exhaust gas, making it safe for indoor release.Exhaust Carbon filter with activated carbon coconut shellHospital-grade power strip with four outlets that provide 110 VAC. Designed to be utilized within the glovebox workspace.Stainless steel work surface or spill tray helps to limit surface damage. If you order a transparent glovebox with a stand, we recommend a work surface or spill tray to increase visibility.Epoxy powder coated steel stand with caster (including two locking). Clean room compatible, the stands are available in 30'' and 35'' height with an optional upgrade to leveling mounts.Magnehelic gauge 0-3" W.G. with polypropylene bracket to monitor inside pressure.
Specifications Approximate Chamber Volume
18 ft³
Specifications Chamber Size
Large
Specifications Configuration
Filtration Open Exhaust
Specifications Main Chamber Overall Depth
24 in
Specifications Main Chamber Overall Height
25 in
Specifications Main Chamber Overall Width
60 in
Specifications Material
Static-Dissipative Acrylic
Specifications Material Thickness
1/4 in
Specifications Number Of Glove Ports
4
Specifications Overall Airlock Depth
10.5 in
Specifications Overall Airlock Height
10.5 in
Specifications Overall Airlock Width
11.7 in
Specifications Side Door Opening
10 x 10 in
