600 LB Magnetic Door Lock
600 LB Magnetic Door Lock
SKU:ACC-a19b54
Reliable 600 lb magnetic door lock with LED indicators & fail-safe release. Ideal for interior use on single/dual doors.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
600 LB Magnetic Door Lock
$189.99
Quantity: 1
Claim Your Seller Account
600 LB Magnetic Door Lock
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

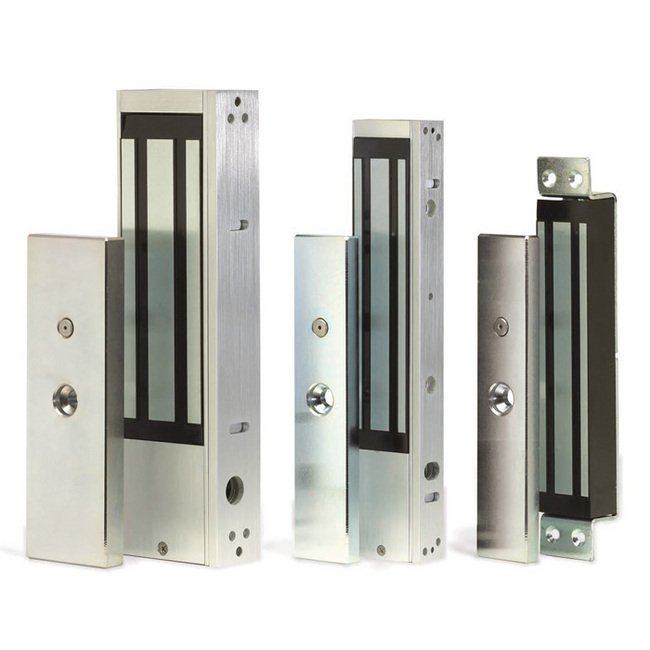

The 600 LB Magnetic Door Lock by DoorKing® is a reliable solution for access control, offering a holding force of 600 lb with fail-safe release. This surface-mounted lock is designed for interior use on single or dual doors, featuring LED status indicators for secure locking. With a 24 VDC operation and a built-in delay timer, this magnetic lock ensures quick access while maintaining high security standards. Ideal for various applications such as Gated Communities, Apartment Complexes, and Commercial/Industrial buildings, it is a vandal-resistant and long-lasting locking device.
Product Specifications
Additional Information Additional Information
The result is a robust product line that functions better in real-world use than any other on the market. From complex systems with multiple gates, doors, floors, user groups and more, to a simple stand-alone device for a single elevator, DKS has engineered a customizable range of products to meet the needs of any property. Digital Keypads, RF and Proximity Card Readers, Electric and Magnetic Locks, MicroCLIK® and MicroPlus® RF Controls, Automated Vehicle ID Systems, and mobile access applications compatible with bluetooth offer any level of security for residential, commercial, and multi-use properties. Higher security is within your reach - with DoorKing® Access Control products.
Advantages Advantages
Wide range of high-quality electro-magnetic Locks and Brackets to accommodate most access control locking requirements.
Applications Applications
Gated CommunitiesApartment ComplexesCondominium/Resident HallMixed UseCommercial/IndustrialMaximum Security
Key Features Key Features

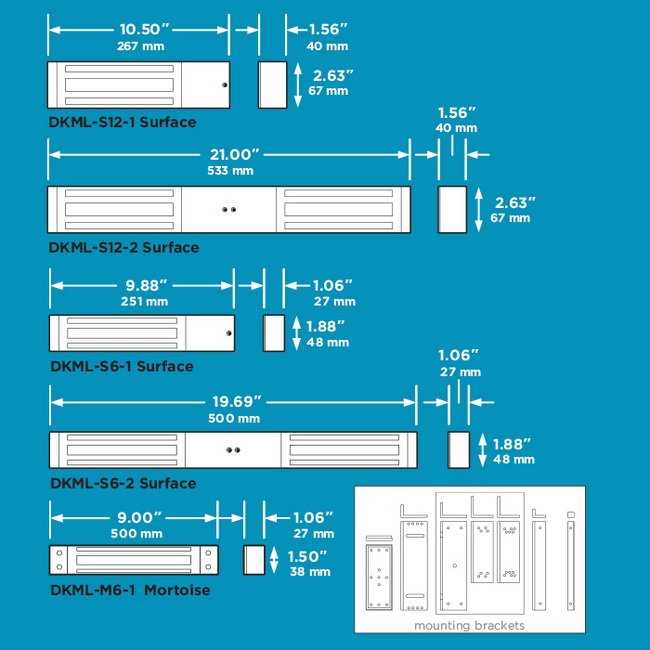

Surface Mount, Interior UseSingle or Dual Doors, Bracket Sets Available600 Lb holding force magnetic lock; single or dual doors.Built-in electrical enclosure24 Volt DC operation.Quick release "pop" button on armature.Single doors surface mount: 1.88 "H x 9.88 "W x 1.06 "D.Dual doors surface mount only: 1.88 "H x 19.69 "W x 1.06 "D.Locks are available with a built-in signal relay and LED status indicator (R/G) and a built-in delay timer adjustable from 1-90 seconds.
Specifications Direct Current Dc Voltage
24 V
Specifications Greenred Light Emitting Diode Led
Available
Specifications Holding Force
600 lb
Specifications Limited Factory Warranty
5 y
Specifications Lock Type
Magnetic
Specifications Mounting Type
Surface
Specifications Release Use
Fail Safe
Specifications Use
Double Doors | Single Door
Technical Specifications Technical Specifications
550 ma at 12v, 275 ma at 24vRelay contacts all locks: 24 VDC, 1 amp maximumDKML-S6-Single: 4.5 lbs. (2.07kg)Dual: 9 lbs. (4.08kg)Magnetic locks have no moving parts to wear out or break which assures a locking device with an extremely long life cycleVandal resistant electromagnetic locks are vandal resistant making them ideal for practically any applicationDoor controls - a full range of exit buttons and door control devices provide easy exit capabilityMost locks are available with an LED status indicator giving a visual indication as to whether the lock is secured or notWhen wired with fire alarms, magnetic locks immediately release the door that they are securing, assuring that fire exit paths are openMounting brackets available for the 600 Lbs locks: armature housing and mounting bracket, L bracket, bracket set of L and Z brackets with hardware, angle bracket, and spacer bar
