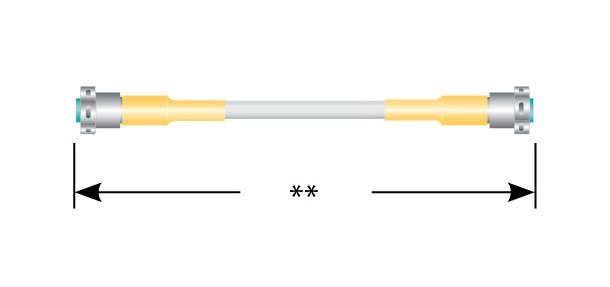

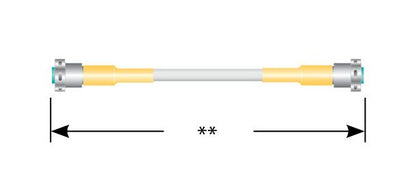

600 Series Double-Ended Shielded Cable Assembly with Hex Plug
600 Series Double-Ended Shielded Cable Assembly with Hex Plug
SKU:HIG-35591a
Reliable 600 Series High Voltage Connectors with 5 kVDC rating, altitude tolerance up to 70,000 ft, shielded cable, and BeCu contacts. RoHS compliant.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
600 Series Double-Ended Shielded Cable Assembly with Hex Plug
$69.99
Quantity: 1
Claim Your Seller Account
600 Series Double-Ended Shielded Cable Assembly with Hex Plug
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the exceptional reliability of the 600 Series high voltage connectors designed for Aerospace/Defense and high-end commercial applications. These subminiature coaxial connectors offer a voltage rating of 5 kVDC and altitude tolerance up to 70,000 ft. The double-ended shielded assembly boasts a current rating of 1 Amp, operating temperature range from -55 to 125°C, and is tested at 7.5 kVDC at 70,000 ft. Built with shielded Type 'L' cable and BeCu contacts for durability. Mates all Series 600 receptacles and complies with RoHS standards.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated | Passivated
Body Properties Coupling Nut Material
Brass | Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications End 1
178-7110
Specifications End 2
178-7110
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
Yes
Specifications Mating Compatibility
Mates all Series 600 receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600
Specifications Shielded Cable
Type "L" cable #167-2896
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Shielded
