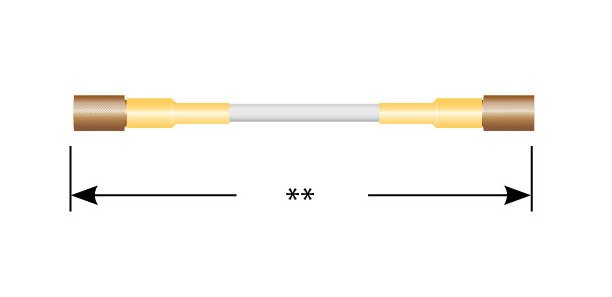

600 Series Double-Ended Shielded Cable Assembly with Knurled Plug
600 Series Double-Ended Shielded Cable Assembly with Knurled Plug
SKU:HIG-4c2296
Reliable 600 Series high voltage connector with double-ended shielded cable assembly and knurled plug, ideal for Aerospace/Defense applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
600 Series Double-Ended Shielded Cable Assembly with Knurled Plug
$49.99
Quantity: 1
Claim Your Seller Account
600 Series Double-Ended Shielded Cable Assembly with Knurled Plug
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched reliability with our 600 Series Double-Ended Shielded Cable Assembly featuring a Knurled Plug. Ideal for Aerospace/Defense and high-end commercial applications, this high voltage connector is rated for use at 70,000 ft. Its subminiature design ensures compatibility with various adapters, while its brass construction with gold plating offers durability. The shielded cable assembly, operating at 5 kVDC, is designed for temperatures ranging from -55 to 125 ºC, making it versatile and resilient in demanding environments.
Product Specifications
Body Properties Coupling Nut Finish
Gold | Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Knurled Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications End 1
167-3770
Specifications End 2
167-3770
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600
Specifications Shielded Cable
Type "L" cable #167-2896
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Shielded
