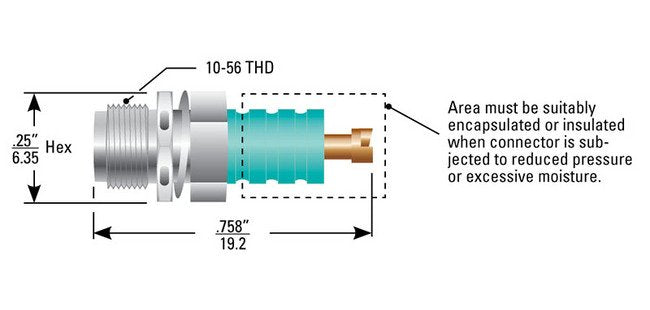

• 600 Series Front Panel Mount Receptacle, Non-Sealed - Image 1
  • 600 Series Front Panel Mount Receptacle, Non-Sealed - Image 2
1 2
Teledyne Reynolds →

600 Series Front Panel Mount Receptacle, Non-Sealed

600 Series Front Panel Mount Receptacle, Non-Sealed

HIG-8780bc

Reliable 600 Series high voltage connector with 5 kVDC rating, ideal for Aerospace/Defense applications.

$49.99
$49.99
Sale

Initiate Order

600 Series Front Panel Mount Receptacle, Non-Sealed

600 Series Front Panel Mount Receptacle, Non-Sealed

$49.99

Quantity: 1

Claim Your Seller Account

600 Series Front Panel Mount Receptacle, Non-Sealed

600 Series Front Panel Mount Receptacle, Non-Sealed

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 600 Series Front Panel Mount Receptacle is a highly reliable subminiature, coaxial, high voltage connector designed for Aerospace/Defense and commercial applications. With a voltage rating of 5 kVDC and altitude compatibility up to 70,000 ft., this connector ensures secure connectivity in demanding environments. Featuring a current rating of 1 Amp, insulator material made of plastic, and gold contact finish, it guarantees optimal performance. The stainless steel coupling nut and threaded coupling style add durability and ease of use, making it a versatile choice for high voltage applications.

Product Specifications

Body Properties Coupling Nut Material
Stainless Steel
Contact Properties Contact Diameter
0.031 in | 0.79 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
Yes
Specifications Mating Compatibility
Mates all Series 600 plug assemblies
Specifications Mating Torque
4 to 6 in-lbs
Specifications Mounting
Requires .197 (5.0 mm) diameter hole
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
8 to 10 in-lbs
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
