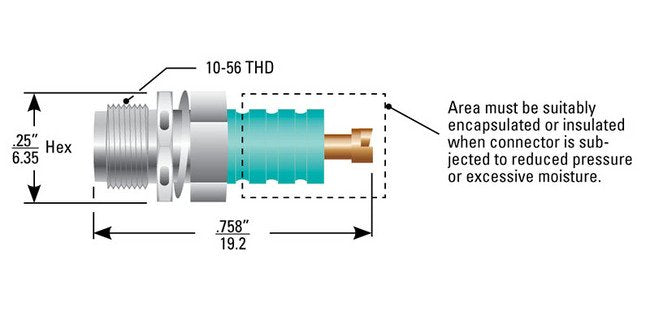

600 Series High Voltage Receptacle, Front Panel Mount
600 Series High Voltage Receptacle, Front Panel Mount
SKU:HIG-188292
Reliable 600 Series High Voltage Receptacle for 5 kVDC applications, altitude-rated up to 70,000 ft, offers superior performance and durability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
600 Series High Voltage Receptacle, Front Panel Mount
$39.99
Quantity: 1
Claim Your Seller Account
600 Series High Voltage Receptacle, Front Panel Mount
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 Series High Voltage Receptacle, perfect for Aerospace/Defense and commercial applications, is a reliable coaxial connector rated for 5 kVDC and altitude use of up to 70,000 ft. With a current rating of 1 Amp, it offers a wide operating temperature range (-55 to 125 °C) and superior mating compatibility. The brass coupling nut with gold plating ensures durability. Front panel mount design with easy installation in a .197 (5.0 mm) diameter hole makes it convenient for various applications.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Diameter
0.031 in | 0.79 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 plug assemblies
Specifications Mating Torque
4 to 6 in-lbs
Specifications Mounting
Requires .197 (5.0 mm) diameter hole
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
8 to 10 in-lbs
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
