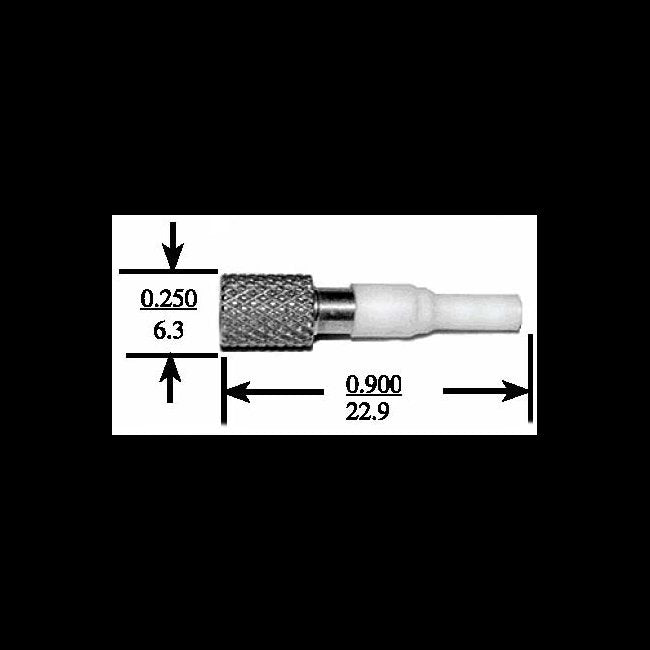

600 Series Non-Shielded High Voltage Plug Kit
600 Series Non-Shielded High Voltage Plug Kit
SKU:HIG-5c4dec
Reliable 600 series high voltage plug kit for commercial and Aerospace/Defense applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
600 Series Non-Shielded High Voltage Plug Kit
$49.99
Quantity: 1
Claim Your Seller Account
600 Series Non-Shielded High Voltage Plug Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 Series Non-Shielded High Voltage Plug Kit is a reliable solution for Aerospace/Defense and commercial applications. With a voltage rating of 5 kVDC, altitude resilience up to 70,000 ft., and operating temperature range of -55 to 125 ºC, this threaded coupling connector ensures secure connections. The brass coupling nut with gold-plated finish and BeCu contact material with gold finish enhance durability and conductivity. Meet various institutional procurement standards with this standard part that mates all Series 600 receptacles.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Knurled Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Non-Shielded
