600 Series Right Angle Non-Sealed Front Mount High Voltage Connector
600 Series Right Angle Non-Sealed Front Mount High Voltage Connector
SKU:HIG-b54f98
Highly reliable 600 Series high voltage connector with 5 kVDC rating, altitude tolerance up to 70,000 ft., and brass coupling nut for aerospace and commercial applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
600 Series Right Angle Non-Sealed Front Mount High Voltage Connector
$34.99
Quantity: 1
Claim Your Seller Account
600 Series Right Angle Non-Sealed Front Mount High Voltage Connector
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 Series Right Angle Non-Sealed Front Mount High Voltage Connector is a subminiature coaxial connector designed for applications requiring high reliability in Aerospace/Defense and commercial sectors. With a voltage rating of 5 kVDC and altitude tolerance up to 70,000 ft., this connector offers exceptional performance. Featuring brass coupling nut with gold plating, BeCu contacts, and a temperature range of -55 to 125°C, it ensures durability and stable connections. Mating compatibility with all Series 600 plug assemblies and plastic insulator material further enhance its versatility. This connector is ideal for demanding environments where compact size and superior electrical performance are crucial.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Diameter
0.031 in | 0.79 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Right Angle Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 plug assemblies
Specifications Mating Torque
4 to 6 in-lbs

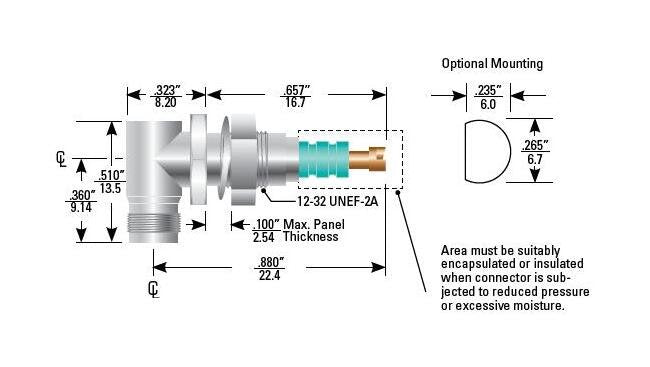

Specifications Mounting
See optional D-hole mounting
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
8 to 10 in-lbs
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
