600 Series Shielded Plug Kit with Hex Coupling
600 Series Shielded Plug Kit with Hex Coupling
SKU:HIG-7759f9
Reliable 600 Series shielded plug kit with hex coupling for high voltage connections, RoHS compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
600 Series Shielded Plug Kit with Hex Coupling
$39.99
Quantity: 1
Claim Your Seller Account
600 Series Shielded Plug Kit with Hex Coupling
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

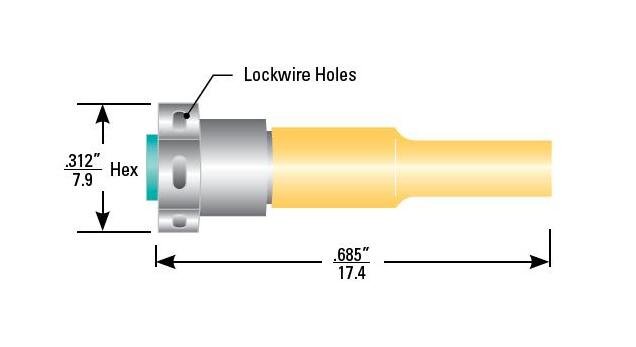

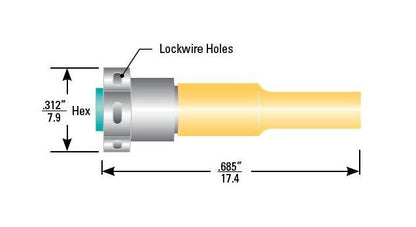

The 600 Series Shielded Plug Kit with Hex Coupling is a reliable solution for high voltage connections in Aerospace/Defense and commercial applications. With a voltage rating of 5 kVDC and altitude tolerance up to 70,000 ft., this plug kit is designed for durability and performance. The shielded wire type, brass/stainless steel coupling nut, and gold-plated BeCu contacts ensure secure connections in challenging environments. Threaded coupling style with lock wire holes provides added safety. RoHS compliance and high mating compatibility with Series 600 and 600-SL receptacles make this plug kit a versatile choice for demanding applications.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated | Passivated
Body Properties Coupling Nut Material
Brass | Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
Yes
Specifications Mating Compatibility
Mates all Series 600 and 600-SL receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Series
600
Specifications Shielded Cable
Type "L" cable #167-2896
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Shielded
