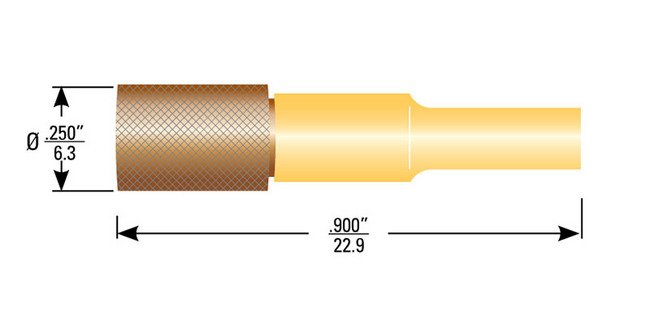

600 Series Shielded Plug Kit with Knurled Coupling
600 Series Shielded Plug Kit with Knurled Coupling
SKU:HIG-b593a4
Reliable 600 Series Shielded Plug Kit for 5 kVDC applications with knurled coupling. Ideal for aerospace/defense and commercial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
600 Series Shielded Plug Kit with Knurled Coupling
$49.99
Quantity: 1
Claim Your Seller Account
600 Series Shielded Plug Kit with Knurled Coupling
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 Series Shielded Plug Kit with Knurled Coupling is a high voltage connector designed for aerospace/defense and commercial applications. Rated for 5 kVDC and altitude up to 70,000 ft, this connector offers reliable performance in extreme conditions. Featuring a brass coupling nut with gold plating, BeCu contacts with gold finish, and shielded wire compatibility, it ensures secure connections and optimal conductivity. With a temperature range of -55 to 125°C and a current rating of 1 Amp, this connector meets stringent industry standards for durability and performance.
Product Specifications
Body Properties Coupling Nut Finish
Gold | Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Knurled Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 and 600-SL receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600
Specifications Shielded Cable
Type "L" cable #167-2896
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Shielded
