600 Series Single-Ended Cable Assembly
600 Series Single-Ended Cable Assembly
SKU:HIG-a0a3f1
Find reliability and precision in the 600 Series Single-Ended Cable Assembly. Ideal for high-voltage demanding applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
600 Series Single-Ended Cable Assembly
$89.99
Quantity: 1
Claim Your Seller Account
600 Series Single-Ended Cable Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

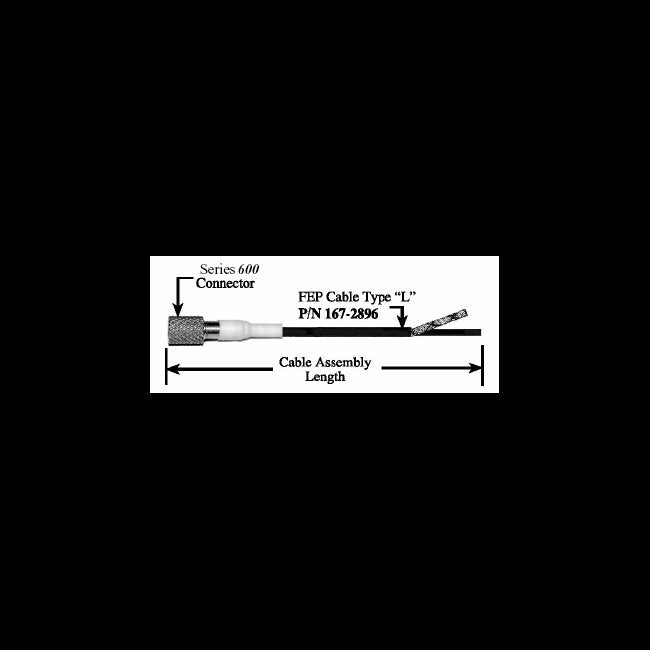

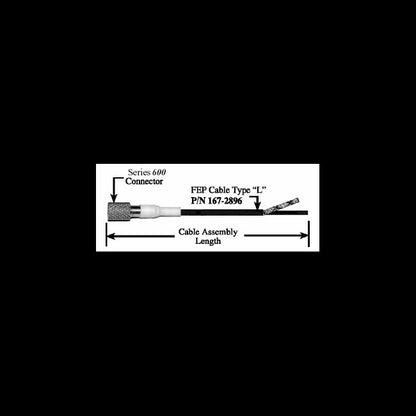

The 600 Series Single-Ended Cable Assembly features subminiature, coaxial high-voltage connectors known for their exceptional reliability in Aerospace/Defense and commercial applications. With a voltage rating of 5 kVDC and altitude capability up to 70,000 ft, this assembly meets demanding industry standards. The knurled brass coupling nut ensures secure connections, while the gold-plated body enhances durability. RoHS compliance and gold-plated BeCu contacts underscore its quality.
Product Specifications
Body Properties Coupling Nut Finish
Gold | Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Knurled Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications End 1
167-7668
Specifications End 2
Plain
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Non-Shielded
