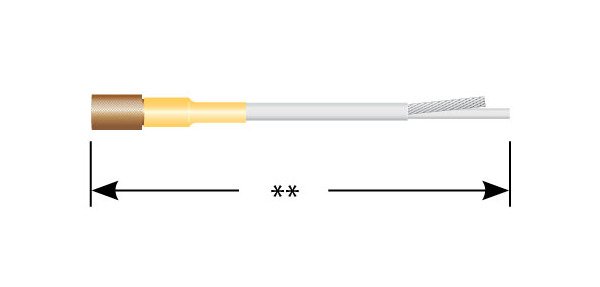

600 Series Single-Ended Shielded Cable Assembly with Knurled Plug
600 Series Single-Ended Shielded Cable Assembly with Knurled Plug
SKU:HIG-1272c1
Reliable 600 Series high voltage cable assembly with knurled plug, rated for 5 kVDC, altitude-ready up to 70,000 ft., and ideal for Aerospace/Defense applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
600 Series Single-Ended Shielded Cable Assembly with Knurled Plug
$39.99
Quantity: 1
Claim Your Seller Account
600 Series Single-Ended Shielded Cable Assembly with Knurled Plug
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 Series Single-Ended Shielded Cable Assembly with Knurled Plug is a subminiature, coaxial high voltage connector designed for reliability in Aerospace/Defense and high-end commercial applications. With a voltage rating of 5 kVDC and altitude capability of 70,000 ft., this connector surpasses industry standards. Featuring a brass coupling nut with gold plating, BeCu contacts with gold finish, and operating temperature range of -55 to 125°C, this assembly ensures secure connections in demanding environments. Mating compatibility with all Series 600 receptacles and a current rating of 1 Amp make it a versatile and dependable choice for high voltage applications.
Product Specifications
Body Properties Coupling Nut Finish
Gold | Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Knurled Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications End 1
167-3770
Specifications End 2
Pig Tail
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Shielded
