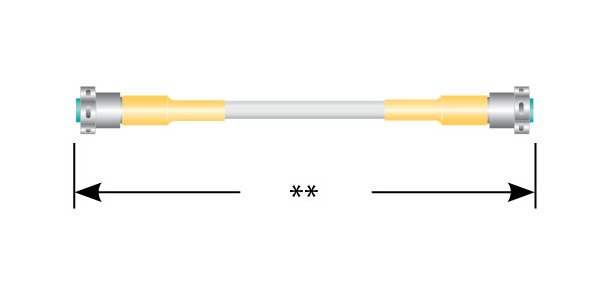

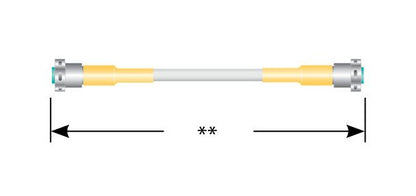

600 SL Series Coaxial Cable Assembly, 10 kVDC, Double-Ended Shielded Hex Plug
600 SL Series Coaxial Cable Assembly, 10 kVDC, Double-Ended Shielded Hex Plug
SKU:HIG-f07243
High voltage 10 kVDC coaxial cable assembly for reliable connections in Aerospace/Defense applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
600 SL Series Coaxial Cable Assembly, 10 kVDC, Double-Ended Shielded Hex Plug
$49.99
Quantity: 1
Claim Your Seller Account
600 SL Series Coaxial Cable Assembly, 10 kVDC, Double-Ended Shielded Hex Plug
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 SL Series Coaxial Cable Assembly features high voltage rating of 10 kVDC, making it ideal for Aerospace/Defense and commercial applications. With a double-ended shielded design and hex plug coupling nut, this assembly ensures secure connections and reliable performance. Made of durable materials including brass and BeCu contacts with gold plating, it offers excellent conductivity and longevity. Tested for up to 15 kVDC at sea level and 7.5 kVDC at 70,000 ft, this assembly meets stringent industry standards for safety and performance.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated | Passivated
Body Properties Coupling Nut Material
Brass | Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
Yes
Specifications Mating Compatibility
Mates all Series 600 SL receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600 SL
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at Sea Level | 7.5 kVDC at 70,000 ft.
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
Shielded
