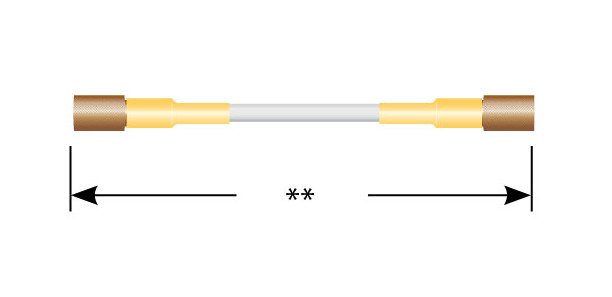

600 SL Series Double-Ended Shielded Cable Assembly with Knurled Plug
600 SL Series Double-Ended Shielded Cable Assembly with Knurled Plug
SKU:HIG-8b2d11
High voltage, subminiature 600 SL Series cable assembly with knurled plug. 10 kVDC, 1 Amp rating. Reliable in aerospace/defense and commercial usage.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
600 SL Series Double-Ended Shielded Cable Assembly with Knurled Plug
$79.99
Quantity: 1
Claim Your Seller Account
600 SL Series Double-Ended Shielded Cable Assembly with Knurled Plug
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 SL Series Double-Ended Shielded Cable Assembly with Knurled Plug is a high-quality, subminiature coaxial connector designed for demanding aerospace/defense and commercial applications. With a Voltage Rating of 10 kVDC, Current Rating of 1 Amp, and operating temperature range of -55 to 125°C, this connector offers exceptional reliability under extreme conditions. The brass coupling nut with gold finish and BeCu contacts ensure secure connections and longevity. Mating compatibility with all Series 600 SL receptacles makes this assembly versatile and practical for various setups. Designed to meet stringent industry standards, this cable assembly is a reliable choice for high voltage applications.
Product Specifications
Body Properties Coupling Nut Finish
Gold | Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Knurled Coupling
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications End 1
167-3770
Specifications End 2
167-3770
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 SL receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600 SL
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at Sea Level | 7.5 kVDC at 70,000 ft.
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
Shielded
