600 SL Series Front Panel Mount Connector
600 SL Series Front Panel Mount Connector
SKU:HIG-cfca98
Reliable 600 SL Series Front Panel Mount Connector for high voltage applications. Durable stainless steel construction with BeCu contacts for secure performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
600 SL Series Front Panel Mount Connector
$39.99
Quantity: 1
Claim Your Seller Account
600 SL Series Front Panel Mount Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

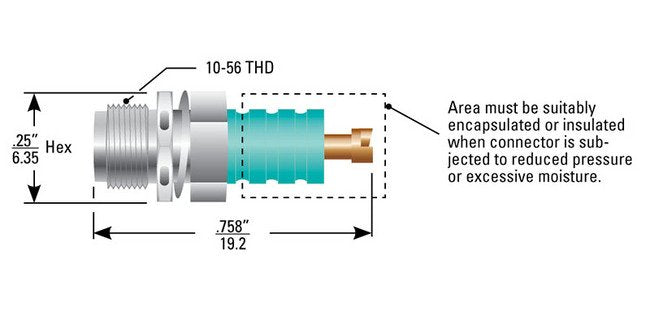

The 600 SL Series Front Panel Mount Connector is a high-quality, subminiature coaxial connector designed for high voltage applications up to 10 kVDC. Built with durable materials like stainless steel coupling nut and BeCu contact material with gold finish, this connector ensures reliable performance in Aerospace/Defense and commercial settings. With a current rating of 1 Amp and an operating temperature range of -55 to 125 °C, it offers secure mating compatibility with all Series 600 SL plug assemblies. Front panel mounting style, plastic insulator, and threaded coupling style make it easy to install and use. Ideal for high-end applications requiring precision and durability.
Product Specifications
Body Properties Coupling Nut Material
Stainless Steel
Contact Properties Contact Diameter
0.031 in | 0.79 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
Yes
Specifications Mating Compatibility
Mates all Series 600 SL plug assemblies
Specifications Mating Torque
4 to 6 in-lbs
Specifications Mounting
Requires .197 (5.0 mm) diameter hole
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
8 to 10 in-lbs
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
600 SL
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at Sea Level
Specifications Voltage Rating
10 kVDC
