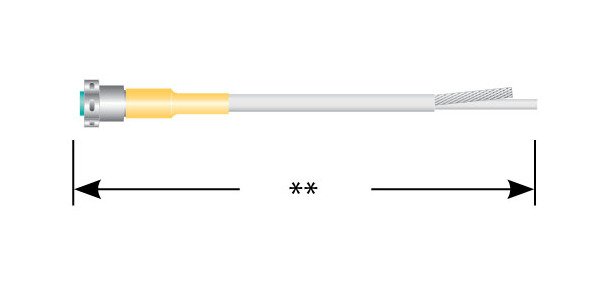

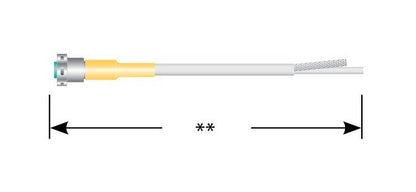

600 SL Series High Voltage Cable Assembly, Single-Ended, Shielded, Hex Plug
600 SL Series High Voltage Cable Assembly, Single-Ended, Shielded, Hex Plug
SKU:HIG-a9ecea
High voltage cable assembly with shielded design, 10 kVDC rating, and durable construction for Aerospace/Defense applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
600 SL Series High Voltage Cable Assembly, Single-Ended, Shielded, Hex Plug
$49.99
Quantity: 1
Claim Your Seller Account
600 SL Series High Voltage Cable Assembly, Single-Ended, Shielded, Hex Plug
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 SL Series High Voltage Cable Assembly with a single-ended shielded design and hex plug ensures reliable and durable connectivity. With a voltage rating of 10 kVDC, this connector is ideal for Aerospace/Defense and high-end commercial applications. Featuring a current rating of 1 Amp, operating temperature from -55 to 125°C, and gold-plated brass coupling nut, this assembly guarantees secure and efficient electrical connections. Mating compatibility with all Series 600 SL receptacles and compliance with industry standards make it a trustworthy choice for critical applications.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated | Passivated
Body Properties Coupling Nut Material
Brass | Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
Yes
Specifications Mating Compatibility
Mates all Series 600 SL receptacles
Specifications Mating Torque
2 to 3 in-lbs
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600 SL
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at Sea Level
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
Shielded
