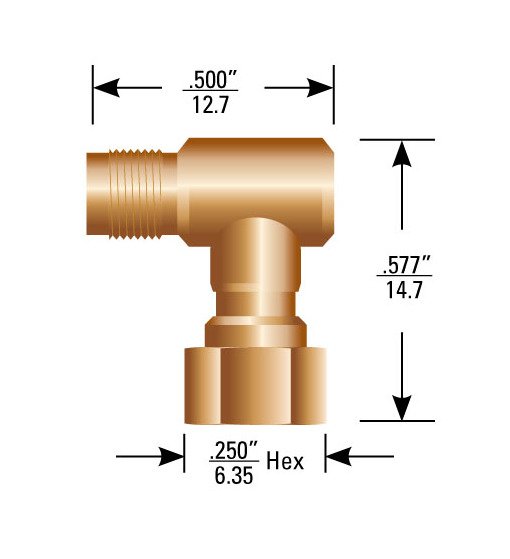

600 SL Series High Voltage Right Angle Adapter
600 SL Series High Voltage Right Angle Adapter
SKU:HIG-e96bfc
Enhance high voltage connections with the 600 SL Series Right Angle Adapter. Mates all Series 600 SL plugs/receptacles, with 10 kVDC voltage rating & BeCu contact material.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
600 SL Series High Voltage Right Angle Adapter
$69.99
Quantity: 1
Claim Your Seller Account
600 SL Series High Voltage Right Angle Adapter
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your high voltage connection efficiency with the 600 SL Series High Voltage Right Angle Adapter. Designed for aerospace, defense, and commercial applications, this non-standard adapter boasts a voltage rating of 10 kVDC, with durable stainless steel coupling nut material and BeCu contact finish for reliable performance in extreme temperatures. With mating compatibility for all Series 600 SL plugs and receptacles, this threaded coupling nut style connector ensures secure connections at operating temperatures ranging from -55 to 125 ºC. Experience seamless high voltage transmission with the 600 SL Series.
Product Specifications
Body Properties Coupling Nut Finish
Passivated
Body Properties Coupling Nut Material
Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Right Angle Adapter
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 SL plugs and receptacles
Specifications Mating Torque
2 to 3 in-lbs
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
600 SL
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
15 kVDC at Sea Level
Specifications Voltage Rating
10 kVDC
