600 SL Series Right Angle Non-Sealed Receptacle
600 SL Series Right Angle Non-Sealed Receptacle
SKU:HIG-12e6e7
Reliable 600 SL Series high-voltage connector for Aerospace/Defense & commercial use. Brass coupling, BeCu contacts, 10 kVDC, durable design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
600 SL Series Right Angle Non-Sealed Receptacle
$49.99
Quantity: 1
Claim Your Seller Account
600 SL Series Right Angle Non-Sealed Receptacle
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 SL Series Right Angle Non-Sealed Receptacle is a subminiature, high voltage connector designed for Aerospace/Defense and commercial applications. With a 10 kVDC voltage rating and durable construction, this connector ensures reliability and performance in demanding environments. Featuring a brass coupling nut with gold plating, BeCu contacts, and a plastic insulator, this connector is built to withstand varying conditions. Its threaded coupling style and front mount panel mounting make it compatible with Series 600 SL plug assemblies, offering secure connections for critical applications.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Diameter
0.031 in | 0.79 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Right Angle Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 SL plug assemblies
Specifications Mating Torque
4 to 6 in-lbs

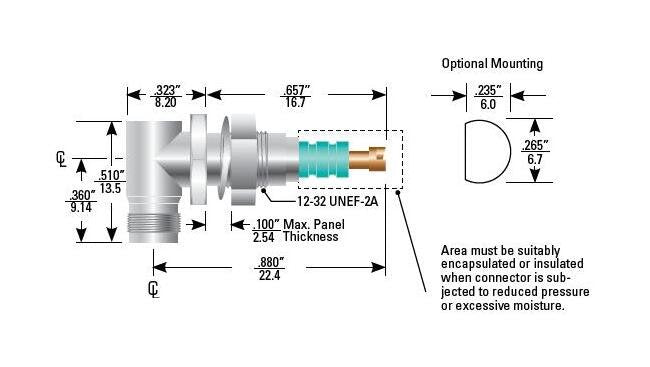

Specifications Mounting
See optional D-hole mounting
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
8 to 10 in-lbs
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
600 SL
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
15 kVDC at Sea Level
Specifications Voltage Rating
10 kVDC
