600 SL Series Sealed Rear Panel Mount Receptacle
600 SL Series Sealed Rear Panel Mount Receptacle
SKU:HIG-0071ae
Reliable 600 SL Series Sealed Rear Panel Mount Receptacle ideal for high voltage applications. Plastic insulator, gold contacts, easy installation, and tested for performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
600 SL Series Sealed Rear Panel Mount Receptacle
$29.99
Quantity: 1
Claim Your Seller Account
600 SL Series Sealed Rear Panel Mount Receptacle
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 SL Series Sealed Rear Panel Mount Receptacle is a high voltage connector known for its exceptional reliability since 1964. With a voltage rating of 10 kVDC and current rating of 1 Amp, this connector is ideal for Aerospace/Defense and high-end commercial applications. Featuring a plastic insulator material, gold contact finish, and brass coupling nut material, it ensures secure connections in a wide range of environments. The rear panel mounting style with a torque of 8 to 10 in-lbs makes installation easy and durable. Tested at 15 kVDC at Sea Level, this connector meets stringent industry standards for reliable performance.
Product Specifications
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Diameter
0.031 in | 0.79 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 SL plug assemblies
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec

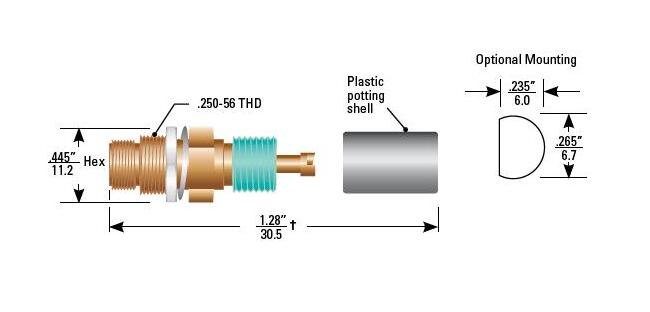

Specifications Mounting
Requires clearance for .250"-56 UNS thread or optional âDâ hole
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Rear Mount
Specifications Panel Mounting Torque
8 to 10 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
600 SL
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at Sea Level
Specifications Voltage Rating
10 kVDC
