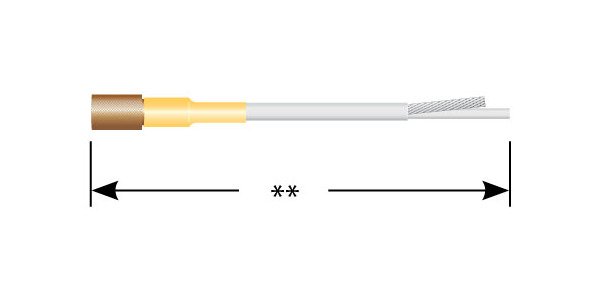

600 SL Series Single-Ended Shielded Cable Assembly with Knurled Plug
600 SL Series Single-Ended Shielded Cable Assembly with Knurled Plug
SKU:HIG-a0415e
High voltage single-ended shielded cable assembly with knurled plug for reliable, durable connections up to 10 kVDC.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
600 SL Series Single-Ended Shielded Cable Assembly with Knurled Plug
$79.99
Quantity: 1
Claim Your Seller Account
600 SL Series Single-Ended Shielded Cable Assembly with Knurled Plug
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 SL Series Single-Ended Shielded Cable Assembly with Knurled Plug is a high-quality, subminiature coaxial connector designed for high voltage applications up to 10 kVDC. Trusted since 1964, this connector is proven reliable in Aerospace/Defense and commercial settings. With a current rating of 1 Amp, operating temperature range of -55 to 125°C, and compatibility with Series 600 and 600 SL receptacles, this cable assembly ensures secure connections and optimal performance. The knurled coupling nut made of brass with gold plating provides durability and easy installation, making it ideal for critical environments where reliability is paramount.
Product Specifications
Body Properties Coupling Nut Finish
Gold | Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Knurled Coupling
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications End 1
167-3770
Specifications End 2
Pig Tail
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 and 600 SL receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600 SL
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at Sea Level
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
Shielded
