600 TRW Wall Mount Jib Crane
600 TRW Wall Mount Jib Crane
SKU:REL-0d4b0c
Reliable 6000 lbs. Wall Mount Jib Crane with double shear steel clevises for heavy-duty use. Ideal for high-cycle industrial applications.
Regular price
$4,499.99
Regular price
Sale price
$4,499.99
Unit price
per
Initiate Order
600 TRW Wall Mount Jib Crane
$4,499.99
Quantity: 1
Claim Your Seller Account
600 TRW Wall Mount Jib Crane
$4,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

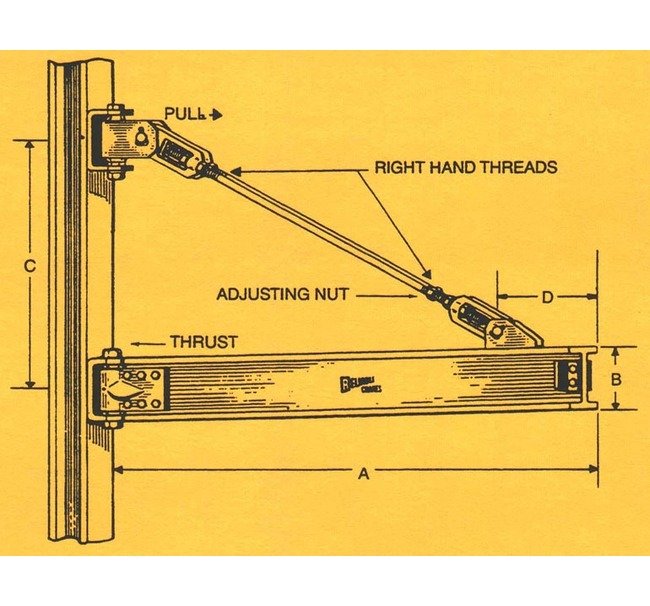

The 600 TRW Wall Mount Jib Crane is a reliable heavy-duty solution for lifting and moving heavy loads up to 6000 lbs. With formed steel clevises providing true double shear, adjustable tie rods, and precision roller thrust bearings, this jib crane ensures smooth operation even under extreme loading conditions. Featuring heavy-duty steel fittings, double tie rod design, and large roller thrust bearings, it guarantees durability and strength for high-cycle usage. Ideal for indoor or outdoor use, this crane is designed for heavy-duty industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features

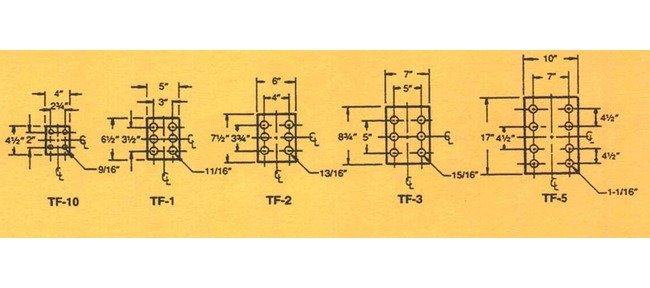

Anchor Bolts | Template
Specifications Boom Fitting D
5'-0"
Specifications Boom Size B
15"
Specifications Capacity
6000 lbs.
Specifications Hinge Centers C
8'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
25500 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
26'-0"
Specifications Thrust And Pull
22440 lbs.
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1832 lbs.
