600 TRW Wall Mount Jib Crane
600 TRW Wall Mount Jib Crane
SKU:REL-060210
Reliable 600 TRW Wall Mount Jib Crane - Double shear strength, smooth swinging motion, and 6000 lbs. capacity for heavy-duty industrial use.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
600 TRW Wall Mount Jib Crane
$6,999.99
Quantity: 1
Claim Your Seller Account
600 TRW Wall Mount Jib Crane
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

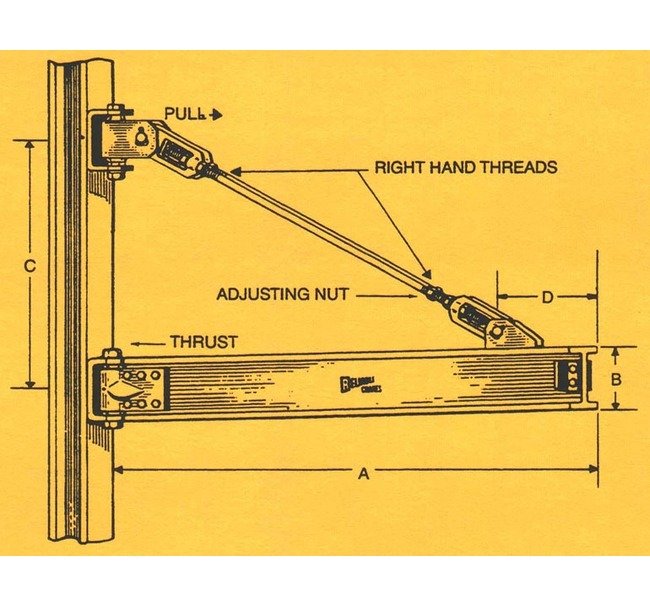

The 600 TRW Wall Mount Jib Crane is engineered for reliability and durability, featuring formed lower steel clevises for double shear strength and resistance to bending. With adjustable tie rods, precision roller thrust bearings, and heavy-duty steel fittings, this crane ensures smooth, free swinging motion under all loading conditions. This model boasts a 6000 lbs. capacity, 28' span, and a max thrust of 25500 lbs., making it ideal for heavy-duty industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Fitting D
5'-0"
Specifications Boom Size B
15"C
Specifications Capacity
6000 lbs.
Specifications Hinge Centers C
8'-9"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
25500 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
28'-0"
Specifications Thrust And Pull
22100 lbs.
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1963 lbs.
