600 TRW Wall Mount Jib Crane
600 TRW Wall Mount Jib Crane
SKU:REL-161798
Reliable 6000 lbs. capacity Wall Mount Jib Crane for heavy-duty industrial use, featuring double tie rod design and precision roller thrust bearings.
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
600 TRW Wall Mount Jib Crane
$7,899.99
Quantity: 1
Claim Your Seller Account
600 TRW Wall Mount Jib Crane
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

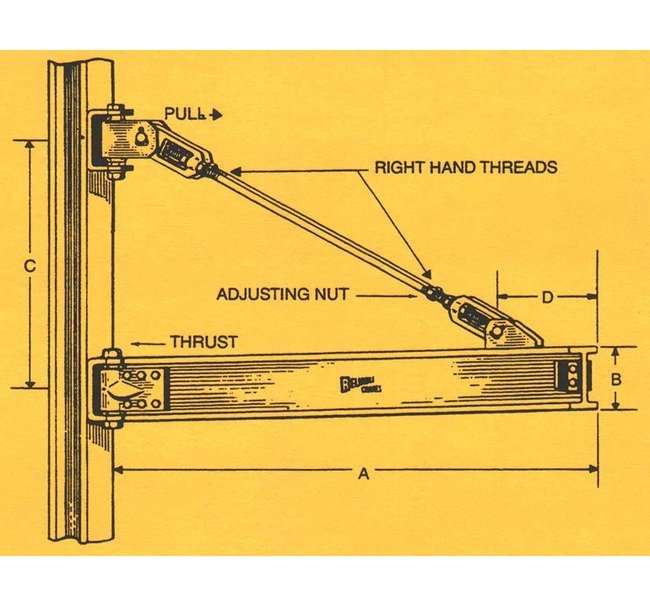

The 600 TRW Wall Mount Jib Crane is designed for heavy-duty industrial applications, featuring a double tie rod design with formed steel clevises for enhanced strength and durability. With a capacity of 6000 lbs. and precision roller thrust bearings, this crane ensures smooth and reliable operation under all loading conditions. The adjustable tie rods, pressure grease lubrication, and large roller thrust bearings further enhance performance, making it suitable for high cycle usage. Ideal for indoor and outdoor use, this crane offers extreme hoist headroom options for versatile applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features

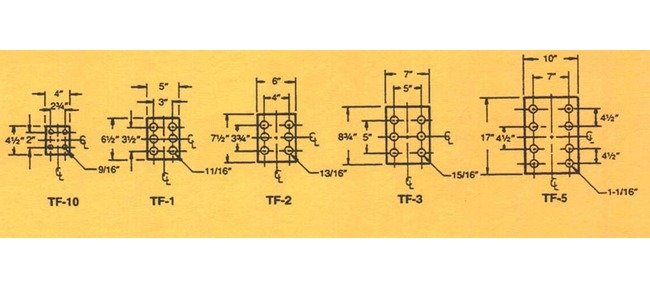

Anchor Bolts | Template
Specifications Boom Fitting D
3'-6"
Specifications Boom Size B
10"
Specifications Capacity
6000 lbs.
Specifications Hinge Centers C
4'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
25500 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
14'-0"
Specifications Thrust And Pull
24170 lbs.
Specifications Tie Rod Diameter
1 1/4 inches
Specifications Tie Rod Length
9'-5"
Specifications Type
Double Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
670 lbs.
