600 TRW Wall Mount Jib Cranes
600 TRW Wall Mount Jib Cranes
SKU:REL-57ec9b
Efficient 600 TRW Wall Mount Jib Cranes: 500 lbs capacity, double tie rod design, smooth swinging motion. Ideal for heavy-duty applications.
Regular price
$3,299.99
Regular price
Sale price
$3,299.99
Unit price
per
Initiate Order
600 TRW Wall Mount Jib Cranes
$3,299.99
Quantity: 1
Claim Your Seller Account
600 TRW Wall Mount Jib Cranes
$3,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 TRW Wall Mount Jib Cranes are designed with a formed lower steel clevis on both sides of the boom web, ensuring true double shear and excellent resistance to bending. Equipped with adjustable tie rods, precision roller thrust bearing, and pressure grease lubrication, these jib cranes offer a smooth swinging motion under varying loading conditions. With a capacity of 500 lbs and advanced features like heavy-duty steel fittings, double tie rod design, and large roller thrust bearings, these cranes are ideal for heavy-duty/high-cycle applications, meeting stringent industry standards.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features

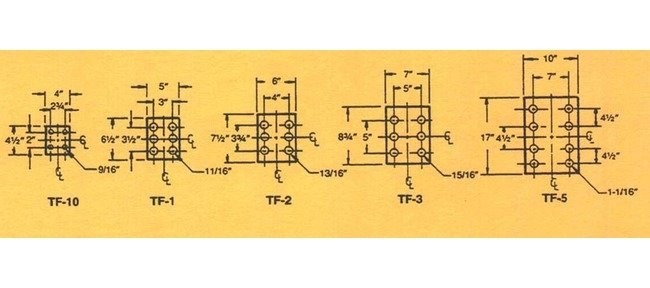

Anchor Bolts | Template

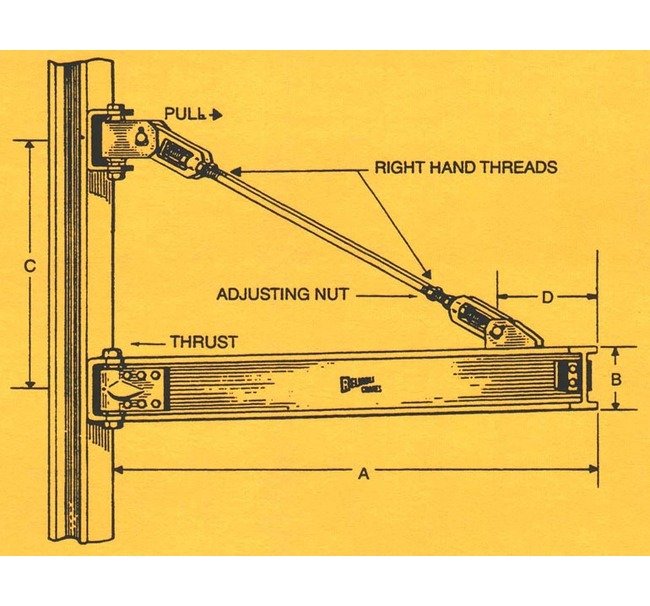

Specifications Boom Fitting D
5'-2"
Specifications Boom Size B
7"
Specifications Capacity
500 lbs.
Specifications Hinge Centers C
7'-4"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
4400 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
24'-0"
Specifications Thrust And Pull
1885 lbs.
Specifications Tie Rod Diameter
7/8 inches
Specifications Tie Rod Length
19'-0"
Specifications Type
Single Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
615 lbs.
