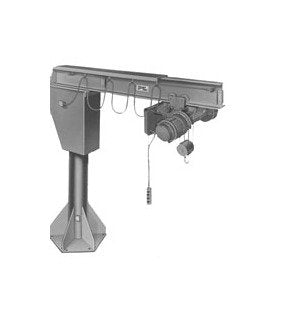

6000 lbs. Model 200 BPM Freestanding Jib Crane

Name: 6000 lbs. Model 200 BPM Freestanding Jib Crane
Brand: Stanspec div. of American Crane & Hoist
SKU: REL-c748eb
Price: 7599.99 USD
Availability: OutOfStock

SKU:REL-c748eb

Robust 6000 lbs. Jib Crane for heavy-duty material handling with precise boom control and versatile mounting options.

$7,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

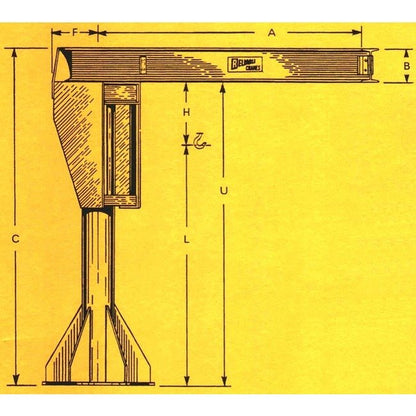

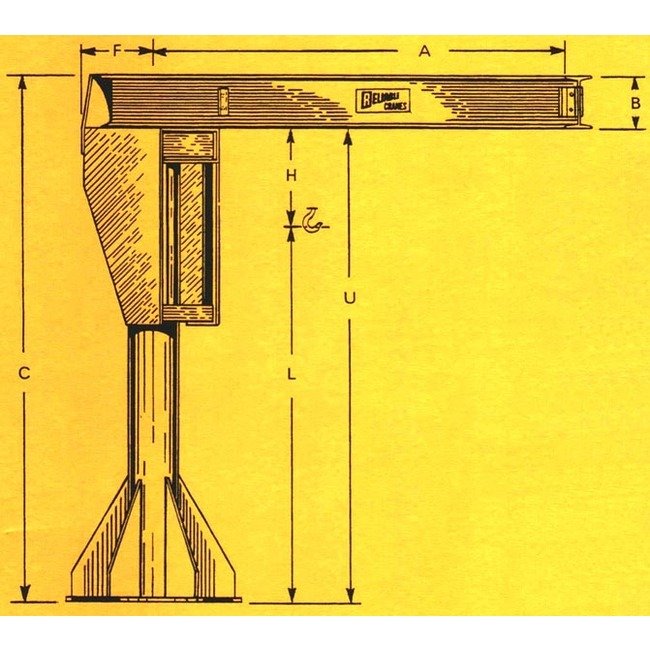

The 6000 lbs. Model 200 BPM Base Plate Mounted Jib Crane is engineered for standard duty applications with precise boom deflection control, ensuring safe hoist travel. Ideal for heavy-duty material handling, it features a 10'-0" span, 15'-0" under boom reach, and 16'-4" max height. With a sturdy 48" base plate, 15" boom size, and 2270 lbs. weight, this crane offers reliability and performance. Choose from various mounting options and electrification features to suit your specific needs.

Product Specifications

Electrification Electrification

Power Supply Extra Features

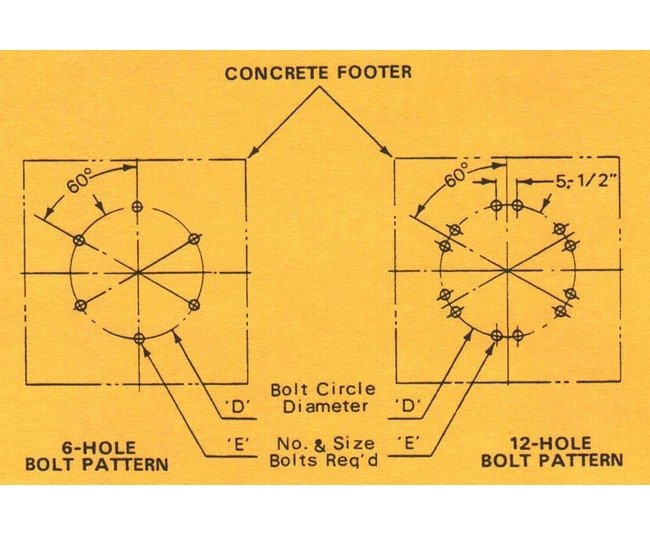

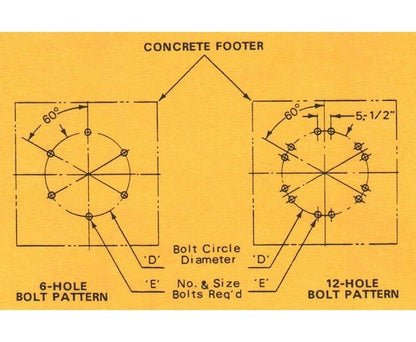

Anchor Bolts | Template

Specifications Base Plate Size D

48 inches

Specifications Bolt Circle Diameter D

42 inches

Specifications Bolt Diameter E

7/8 inches

Specifications Boom Size B

15 inches

Specifications Capacity

6000 lbs.

Specifications Hoist Headroom

Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

Specifications Max Height C

16'-4"

Specifications Model

BPM | CIM | TRW | CDC | TDC | CBM | TRM

Specifications Mounting

BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted

Specifications No Of Bolts

Specifications Span A

10'-0"

Specifications Under Boom U

15'-0"

Specifications Usage

Heavy - Heavy Duty/High Cycle | Standard - General Purpose

Specifications Weight

2270 lbs.
