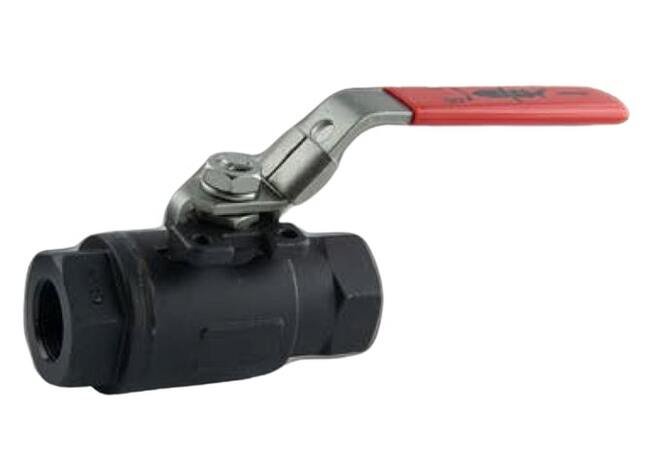

6000C Series 1-1/2" Class 2500 NPT Threaded Ball Valve
6000C Series 1-1/2" Class 2500 NPT Threaded Ball Valve
SKU:600-b63022
High-pressure 1-1/2" NPT ball valve with full port design, ASME compliant, fire-safe approved, and pressure tested for industrial reliability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
6000C Series 1-1/2" Class 2500 NPT Threaded Ball Valve
$299.99
Quantity: 1
Claim Your Seller Account
6000C Series 1-1/2" Class 2500 NPT Threaded Ball Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6000C Series 1-1/2 Inch Port Size Ball Valve is designed for high-pressure applications up to 6000 psi. This two-piece valve features a full port for maximum flow, investment casting for durability, and ASME B16.34 Class 1500 wall thickness. Compliant with ASME, ISO, and NACE standards, fire-safe approved, pressure tested to API 598, and featuring a locking lever handle, this ball valve ensures reliable performance and safety in industrial settings.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
1.50 in
Technical Specs Dimension B
5.3 in
Technical Specs Dimension C
4.26 in
Technical Specs Dimension D
14.20 in
Technical Specs Dimension E
3.85 in
Technical Specs Dimension F
2.50 in
Technical Specs Dimension G
0.34 in
Technical Specs Dimension H
0.392 in
Technical Specs Dimension J
0.623 in
Technical Specs Dimension K
2.756 in
Technical Specs Flow Coefficients Cv
140
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
1200 in·lb
Technical Specs Mounting Pad Sizes
F07
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1-1/2 in
Technical Specs Pressure Rating
6000 psi
Technical Specs Pressure Test
BT2HA 60
Technical Specs Pressure Test For Seal Test Water
6600 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
9000 psi
Technical Specs Thread Size L
5/16 in.-18
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
6.62 kg
