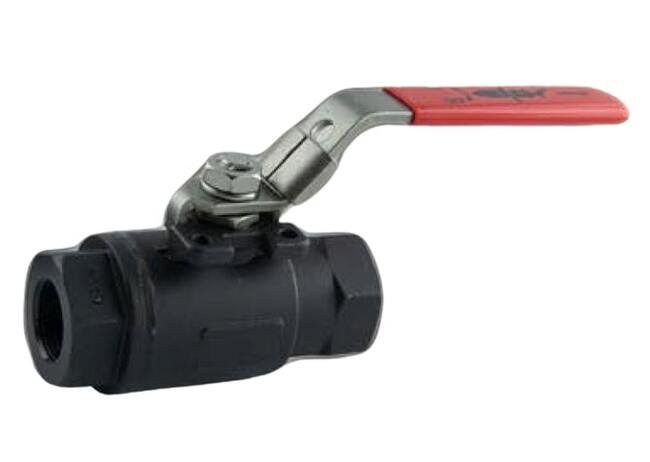

6000C Series 1/2in NPT Threaded Ball Valve, Class 2500, Full Port
6000C Series 1/2in NPT Threaded Ball Valve, Class 2500, Full Port
SKU:600-36d30f
High-performance 1/2in NPT Class 2500 Ball Valve for industrial use
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
6000C Series 1/2in NPT Threaded Ball Valve, Class 2500, Full Port
$99.99
Quantity: 1
Claim Your Seller Account
6000C Series 1/2in NPT Threaded Ball Valve, Class 2500, Full Port
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6000C Series 1/2in NPT Threaded Ball Valve is precision-engineered for industrial applications. With a pressure rating of 6000 psi, this valve ensures reliable performance. Features include investment casting, fire-safe approval, and ISO 5211 mounting pad, meeting ASME B16.34, ISO 5211, and NACE MR-0175 standards.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.50 in
Technical Specs Dimension B
4.0 in
Technical Specs Dimension C
2.22 in
Technical Specs Dimension D
5.00 in
Technical Specs Dimension E
1.64 in
Technical Specs Dimension F
1.00 in
Technical Specs Dimension G
0.18 in
Technical Specs Dimension H
0.195 in
Technical Specs Dimension J
0.311 in
Technical Specs Dimension K
1.417 in
Technical Specs Flow Coefficients Cv
16
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
140 in·lb
Technical Specs Mounting Pad Sizes
F03
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1/2 in
Technical Specs Pressure Rating
6000 psi
Technical Specs Pressure Test
BT2HA 60
Technical Specs Pressure Test For Seal Test Water
6600 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
9000 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
1.08 kg
