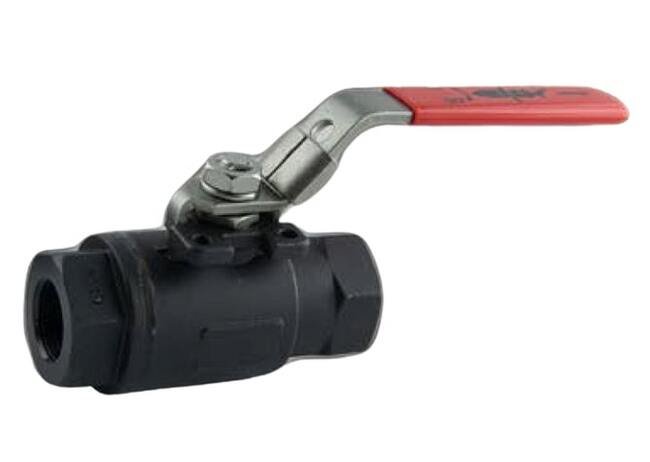

6000C Series 1/4 Inch Class 2500 NPT Threaded Ball Valve
6000C Series 1/4 Inch Class 2500 NPT Threaded Ball Valve
SKU:600-443f48
High-pressure 1/4in Class 2500 NPT Threaded Ball Valve, ASME B16.34 compliant, fire-safe, pressure tested, precise control.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
6000C Series 1/4 Inch Class 2500 NPT Threaded Ball Valve
$89.99
Quantity: 1
Claim Your Seller Account
6000C Series 1/4 Inch Class 2500 NPT Threaded Ball Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6000C Series Class 2500 NPT Threaded Ball Valve with a 1/4 inch port size is designed for high-pressure applications, featuring full port configuration, investment casting, and ASME B16.34 Class 2500 compliance. This two-piece ball valve delivers precision performance with a floating ball, fire-safe approval per API607 5th Ed., ISO 5211 mounting pad, and a locking lever handle. Pressure tested to API 598 standards, it ensures reliable operation in critical environments.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 2500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.25 in
Technical Specs Dimension B
3.0 in
Technical Specs Dimension C
2.22 in
Technical Specs Dimension D
5.00 in
Technical Specs Dimension E
1.64 in
Technical Specs Dimension F
1.00 in
Technical Specs Dimension G
0.18 in
Technical Specs Dimension H
0.195 in
Technical Specs Dimension J
0.311 in
Technical Specs Dimension K
1.417 in
Technical Specs Flow Coefficients Cv
10
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
100 in·lb
Technical Specs Mounting Pad Sizes
F03
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1/4 in
Technical Specs Pressure Rating
6000 psi
Technical Specs Pressure Test
BT2HA 60
Technical Specs Pressure Test For Seal Test Water
6600 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
9000 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
0.72 kg
