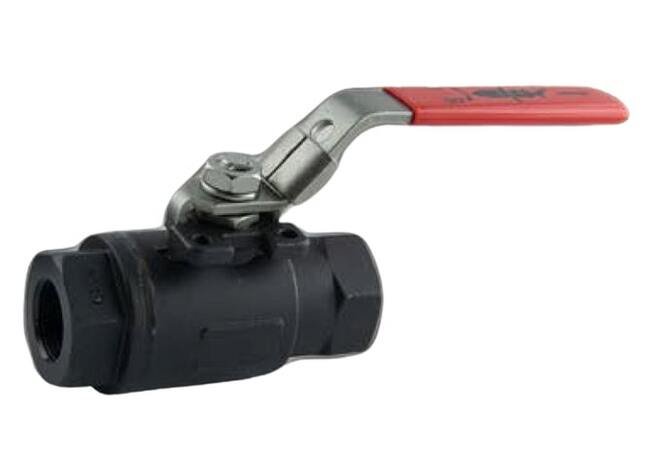

6000C Series 1" NPT Threaded Ball Valve
6000C Series 1" NPT Threaded Ball Valve
SKU:600-d3264d
High-pressure 1" NPT Ball Valve, Fire-Safe & ASME B16.34 compliant, ideal for critical applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
6000C Series 1" NPT Threaded Ball Valve
$199.99
Quantity: 1
Claim Your Seller Account
6000C Series 1" NPT Threaded Ball Valve
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6000C Series Class 2500 National Pipe Thread (NPT) Threaded Two Piece Ball Valve features a Full Port design with a pressure rating of 6000 psi, making it ideal for high-pressure applications. This valve is precision engineered with Investment Casting for durability and is ASME B16.34 Class 1500 compliant. It is Fire-Safe Approved per API607 5th Ed., ISO 5211 Mounting Pad for easy automation, and Seal Welded for added security. Tested to API 598 standards, this ball valve ensures reliable performance and longevity.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
1.00 in
Technical Specs Dimension B
4.8 in
Technical Specs Dimension C
3.50 in
Technical Specs Dimension D
8.19 in
Technical Specs Dimension E
2.81 in
Technical Specs Dimension F
1.76 in
Technical Specs Dimension G
0.28 in
Technical Specs Dimension H
0.374 in
Technical Specs Dimension J
0.559 in
Technical Specs Dimension K
1.969 in
Technical Specs Flow Coefficients Cv
62
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
700 in·lb
Technical Specs Mounting Pad Sizes
F05
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1 in
Technical Specs Pressure Rating
6000 psi
Technical Specs Pressure Test
BT2HA 60
Technical Specs Pressure Test For Seal Test Water
6600 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
9000 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
3.06 kg
