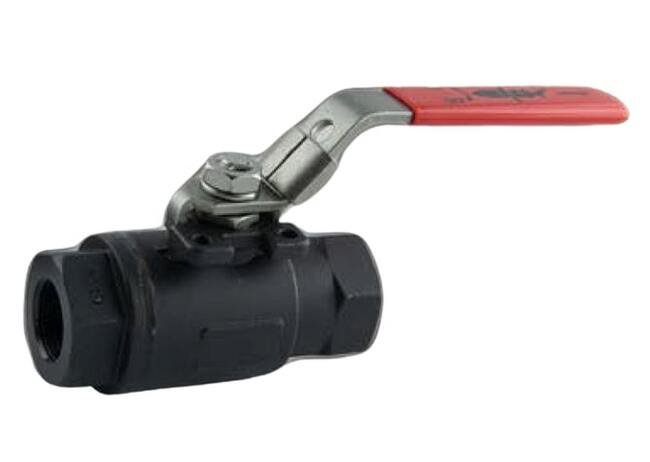

6000C Series 2" NPT Threaded Ball Valve, Class 2500, 2-Piece
6000C Series 2" NPT Threaded Ball Valve, Class 2500, 2-Piece
SKU:600-573c52
High-performance 2" NPT Threaded Ball Valve, Class 2500, ASME B16.34 and ISO 5211 compliant.
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Initiate Order
6000C Series 2" NPT Threaded Ball Valve, Class 2500, 2-Piece
$219.99
Quantity: 1
Claim Your Seller Account
6000C Series 2" NPT Threaded Ball Valve, Class 2500, 2-Piece
$219.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6000C Series 2" NPT Threaded Ball Valve combines high performance and durability for industrial applications. With a pressure rating of 6000 psi and compliance with ASME B16.34, ISO 5211, and NACE MR-0175, this valve offers reliable operation. Features like Investment Casting, Fire-Safe Approval, and Seal Welded construction ensure safety and longevity. Ideal for applications requiring precision control and secure shut-off.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
1.50 in
Technical Specs Dimension B
6.3 in
Technical Specs Dimension C
4.26 in
Technical Specs Dimension D
14.20 in
Technical Specs Dimension E
3.85 in
Technical Specs Dimension F
2.50 in
Technical Specs Dimension G
0.34 in
Technical Specs Dimension H
0.392 in
Technical Specs Dimension J
0.623 in
Technical Specs Dimension K
2.756 in
Technical Specs Flow Coefficients Cv
120
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
1200 in·lb
Technical Specs Mounting Pad Sizes
F07
Technical Specs Port Configuration
Reduced Port
Technical Specs Port Size
2 in
Technical Specs Pressure Rating
6000 psi
Technical Specs Pressure Test
BT2HA 60
Technical Specs Pressure Test For Seal Test Water
6600 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
9000 psi
Technical Specs Thread Size L
5/16 in.-18
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
8.20 kg
