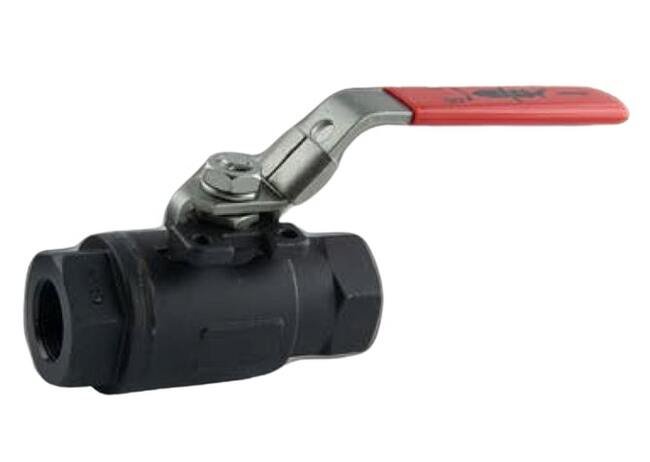

6000C Series 3/4 Inch Class 2500 NPT Threaded Ball Valve
6000C Series 3/4 Inch Class 2500 NPT Threaded Ball Valve
SKU:600-7c8be2
High-performance 3/4
Regular price
$245.99
Regular price
Sale price
$245.99
Unit price
per
Initiate Order
6000C Series 3/4 Inch Class 2500 NPT Threaded Ball Valve
$245.99
Quantity: 1
Claim Your Seller Account
6000C Series 3/4 Inch Class 2500 NPT Threaded Ball Valve
$245.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6000C Series 3/4 Inch Class 2500 NPT Threaded Ball Valve is a top-of-the-line solution for precise flow control. With a sturdy construction meeting ASME and ISO standards, featuring Investment Casting and Fire-Safe Approval, this valve ensures reliability and safety in high-pressure environments. Tested to API standards, it offers superior performance and longevity, making it an ideal choice for industrial applications.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.75 in
Technical Specs Dimension B
4.3 in
Technical Specs Dimension C
2.89 in
Technical Specs Dimension D
5.83 in
Technical Specs Dimension E
2.13 in
Technical Specs Dimension F
1.32 in
Technical Specs Dimension G
0.21 in
Technical Specs Dimension H
0.274 in
Technical Specs Dimension J
0.436 in
Technical Specs Dimension K
1.654 in
Technical Specs Flow Coefficients Cv
32
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
270 in·lb
Technical Specs Mounting Pad Sizes
F04
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
3/4 in
Technical Specs Pressure Rating
6000 psi
Technical Specs Pressure Test
BT2HA 60
Technical Specs Pressure Test For Seal Test Water
6600 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
9000 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
1.73 kg
