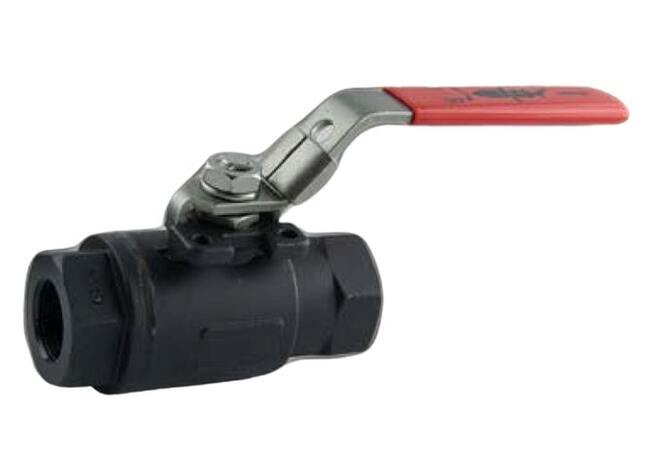

6000C Series 3/8 Inch NPT Threaded Ball Valve
6000C Series 3/8 Inch NPT Threaded Ball Valve
SKU:600-de6c2a
High-pressure 6000 psi 3/8" NPT Ball Valve with ASME B16.34 and API607 compliance for optimal flow control and safety.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
6000C Series 3/8 Inch NPT Threaded Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
6000C Series 3/8 Inch NPT Threaded Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6000C Series 3/8 Inch NPT Threaded Ball Valve is designed for high-pressure applications with a pressure rating of 6000 psi. Its full port and investment casting ensure optimal flow control, while meeting industry standards such as ASME B16.34, API607, and ISO 5211. With features like a locking lever handle and fire-safe approval, this valve offers reliability and safety in critical operations.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.50 in
Technical Specs Dimension B
3.0 in
Technical Specs Dimension C
2.22 in
Technical Specs Dimension D
5.00 in
Technical Specs Dimension E
1.64 in
Technical Specs Dimension F
1.00 in
Technical Specs Dimension G
0.18 in
Technical Specs Dimension H
0.195 in
Technical Specs Dimension J
0.311 in
Technical Specs Dimension K
1.417 in
Technical Specs Flow Coefficients Cv
10
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
100 in·lb
Technical Specs Mounting Pad Sizes
F03
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
3/8 in
Technical Specs Pressure Rating
6000 psi
Technical Specs Pressure Test
BT2HA 60
Technical Specs Pressure Test For Seal Test Water
6600 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
9000 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
0.70 kg
