6000S Series 1-1/2in NPT Threaded Ball Valve, Class 2500, Full Port
6000S Series 1-1/2in NPT Threaded Ball Valve, Class 2500, Full Port
SKU:600-99d3dd
High-performance 1-1/2in NPT Threaded Ball Valve, Class 2500, for up to 6000 psi. ASME B16.34 compliant, fire-safe approved.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
6000S Series 1-1/2in NPT Threaded Ball Valve, Class 2500, Full Port
$289.99
Quantity: 1
Claim Your Seller Account
6000S Series 1-1/2in NPT Threaded Ball Valve, Class 2500, Full Port
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

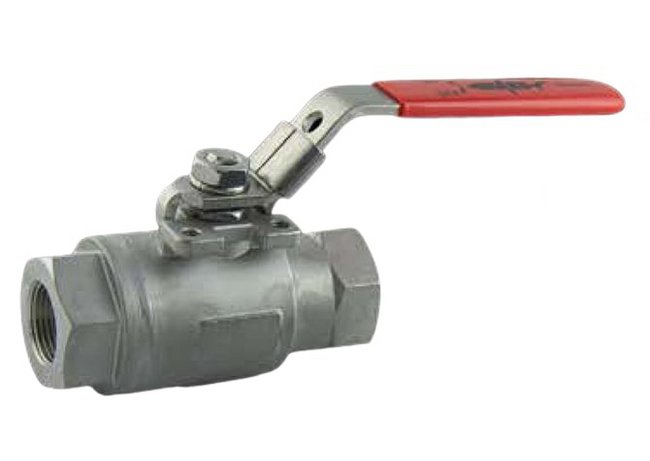

The 6000S Series 1-1/2 Inch (in) Port Size Class 2500 National Pipe Thread (NPT) Threaded Two Piece Ball Valve is a premium quality valve designed for high-pressure applications up to 6000 psi. This valve features a full port design, investment casting, ASME B16.34 Class 1500 wall thickness, and a floating ball for optimal performance. With industry standards compliance including ASME B16.34, ISO 5211, and NACE MR-0175, this valve is fire-safe approved per API607 5th Ed. It also comes with a locking lever handle, seal welded construction, and is pressure tested to API 598 standards.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
1.50 in
Technical Specs Dimension B
5.3 in
Technical Specs Dimension C
4.26 in
Technical Specs Dimension D
14.20 in
Technical Specs Dimension E
3.85 in
Technical Specs Dimension F
2.50 in
Technical Specs Dimension G
0.34 in
Technical Specs Dimension H
0.392 in
Technical Specs Dimension J
0.623 in
Technical Specs Dimension K
2.756 in
Technical Specs Flow Coefficients Cv
140
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
1200 in·lb
Technical Specs Mounting Pad Sizes
F07
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1-1/2 in
Technical Specs Pressure Rating
6000 psi
Technical Specs Pressure Test
BT2HA 60
Technical Specs Pressure Test For Seal Test Water
6600 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
9000 psi
Technical Specs Thread Size L
5/16 in.-18
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
6.62 kg
