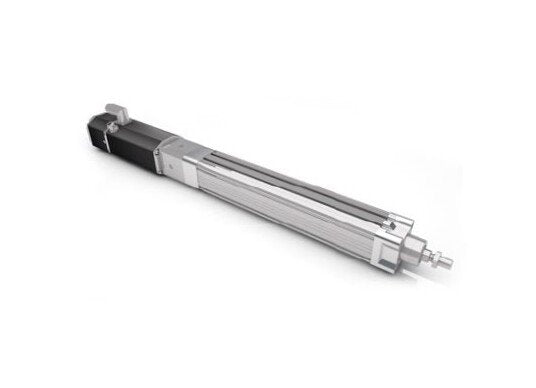

600N Constant Force Electric Cylinder - Dunkermotoren BG 75x75
600N Constant Force Electric Cylinder - Dunkermotoren BG 75x75
SKU:ELE-0176f9
Enhance precision and efficiency with the 600N Constant Force Electric Cylinder by Dunkermotoren. Ideal for institutional use.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
600N Constant Force Electric Cylinder - Dunkermotoren BG 75x75
$799.99
Quantity: 1
Claim Your Seller Account
600N Constant Force Electric Cylinder - Dunkermotoren BG 75x75
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 600 Newton Constant Force Electric Cylinder by Dunkermotoren, with a brushless DC servomotor, offers precise positioning, high efficiency, and maintenance-free operation. With a 600N constant force, maximum acceleration of 1 mm/s², and lifetime L10 of 100 km, this cylinder ensures reliable performance. Meeting European Conformity (CE) and Underwriters Laboratories (UL) standards, it provides self-locking ratios, high dynamic capabilities, and vibration resistance, making it an ideal alternative to pneumatic cylinders in institutional applications.
Product Specifications
Additional Information Additional Information
Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 52 on request
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Note Note
Not applicable for motions on mechanical stop.
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
600 N
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Lifetime L10
100 km
Technical Specs Maximum Acceleration
1 mm/s²
Technical Specs Maximum Traverse Speed
70 mm/s
Technical Specs Motor Type
BG 75x75
Technical Specs Nominal Current
12.7 A
Technical Specs Nominal Direct Current Dc Voltage
40 to 48 V
Technical Specs Peak Current 2 Second S
50 A
Technical Specs Peak Force
600 N
Technical Specs Protection Class
Ingress Protection (IP54S)
Technical Specs Repeatability
0.07 mm
Technical Specs Spindle Pitch
2.5 mm
Technical Specs Spindle Version
LS (Lead Screw)
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm
