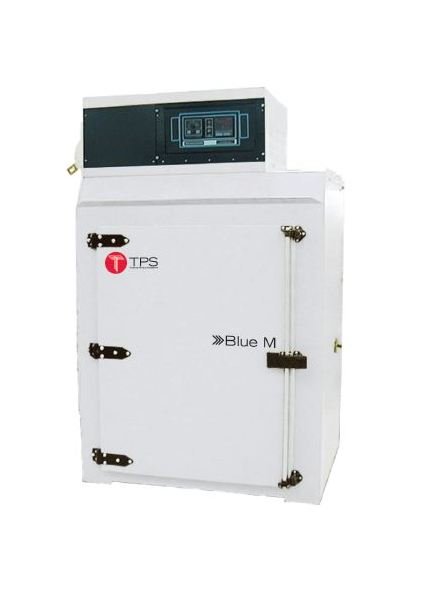

606 Model Industrial Batch Oven
606 Model Industrial Batch Oven
SKU:BLU-44c4c1
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
606 Model Industrial Batch Oven
$49.99
Quantity: 1
Claim Your Seller Account
606 Model Industrial Batch Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Batch Ovens have for years been meeting a variety of test and production applications. Their reliability and fine performance have made them the choice of many industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ac Voltage At 3 Phase
208 V | 240 V | 480 V
Specifications Electrical Service
Hi Power | Standard
Specifications Exterior Depth
63 in | 160 mm
Specifications Exterior Height
93 in | 236.2 mm
Specifications Exterior Width
80 in | 203.2 mm
Specifications Frequency
60 Hz
Specifications Interior Depth
48 in | 121.9 mm
Specifications Interior Height
60 in | 152.4 mm
Specifications Interior Volume
60 ft³
Specifications Interior Width
36 in | 91.4 mm
Specifications Line Current Per Phase At 208 Volts V 3 Phase Hi
33 A
Specifications Line Current Per Phase At 208 Volts V 3 Phase Sta
33 A
Specifications Line Current Per Phase At 240 Volts V 3 Phase Hi
96 A
Specifications Line Current Per Phase At 240 Volts V 3 Phase Sta
70 A
Specifications Line Current Per Phase At 480 Volts V 3 Phase Hi
48 A
Specifications Line Current Per Phase At 480 Volts V 3 Phase Sta
34 A
Specifications Machine Footprint
35 ft²
Specifications Rated Power At 208 Volts V 3 Phase Hi Power
11 kW
Specifications Rated Power At 208 Volts V 3 Phase Standard
11 kW
Specifications Rated Power At 240 Volts V 3 Phase Hi Power
34.5 kW
Specifications Rated Power At 240 Volts V 3 Phase Standard
24 kW
Specifications Rated Power At 480 Volts V 3 Phase Hi Power
36 kW
Specifications Rated Power At 480 Volts V 3 Phase Standard
24 kW
Specifications Roll In Rack Options
Custom designed roll-in racks for product fixturing | Pass-through “tunnel” design with front and rear doors | Roll-in rack shelves | Special truck channel or flat uninsulated floor for customer designed racks | Stainless steel roll-in racks
Specifications Standard Batch Oven Options
Stainless steel slotted shelves | High-temperature capability of 399°C (750°F) | High power for fast heat-up, high exhaust or large loads | Door switch | Motorized intake damper | Welded and sealed inner chamber | 24-hour, 7-day program timer | 10 Inch (in) circular chart recorder | Reverse door hinge | Back-up over-temperature protection
