6061 Alloy O Soft Temper Aluminum Sheet 0.0080 in Thickness
6061 Alloy O Soft Temper Aluminum Sheet 0.0080 in Thickness
SKU:606-7cce53
High-quality 6061 Alloy O Soft Temper Aluminum Sheet in 0.0080 in thickness, ASTM-B-209 & AMS-4025 compliant.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
6061 Alloy O Soft Temper Aluminum Sheet 0.0080 in Thickness
$25.99
Quantity: 1
Claim Your Seller Account
6061 Alloy O Soft Temper Aluminum Sheet 0.0080 in Thickness
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
This 6061 Alloy O Soft Temper Aluminum Sheet features a precise thickness of 0.0080 inches with ASTM-B-209 and AMS-4025 standards compliance. With a maximum tensile strength of 22,000 psi and maximum yield strength of 12,000 psi, it offers the ideal balance of durability and flexibility. The composition includes maximum percentages of key elements like silicon, magnesium, and chromium, ensuring quality and reliability in various applications. Whether for consumer projects or institutional needs, this aluminum sheet guarantees superior performance.

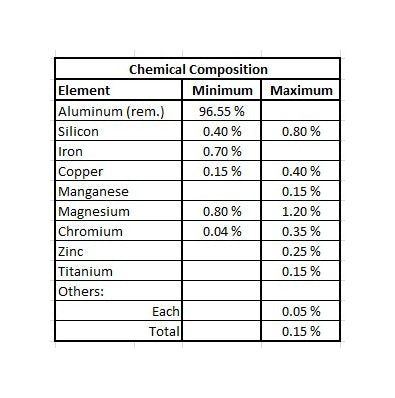

Product Specifications
Composition Maximum Chromium Composition
0.35 %
Composition Maximum Copper Composition
0.40 %
Composition Maximum Magnesium Composition
1.20 %
Composition Maximum Manganese Composition
0.15 %
Composition Maximum Others Composition Each
0.05 %
Composition Maximum Others Composition Total
0.15 %
Composition Maximum Silicon Composition
0.80 %
Composition Maximum Titanium Composition
0.15 %
Composition Maximum Zinc Composition
0.25 %
Physical Properties Maximum Tensile Strength
22,000 psi
Physical Properties Maximum Yield Strength
12,000 psi
Physical Properties Minimum Elongation 0008 To 0009 Inch In Thic
12 %
Physical Properties Minimum Elongation 0010 To 0020 Inch In Thic
14 %
Physical Properties Minimum Elongation 0021 To 0128 Inch In Thic
16 %
Specifications Alloy
6061 Aluminum Alloy
Specifications Ams Standard
AMS-4025
Specifications Astm Steel Standard
ASTM-B-209
Specifications Length
Custom
Specifications Temper
"O" Soft Temper
Specifications Thickness
0.0080 in
Specifications Thickness Tolerance
0.0008 in
Specifications Width
Custom
