6061 Alloy O Soft Temper Aluminum Sheet - 0.0100 in Thickness

Name: 6061 Alloy O Soft Temper Aluminum Sheet - 0.0100 in Thickness
Brand: Thin Metal Sales, Inc.
SKU: 606-4122cb
Price: 39.99 USD
Availability: OutOfStock

SKU:606-4122cb

High-quality 6061 Alloy Aluminum Sheet - 0.0100 in Thickness, ASTM-B-209 & AMS-4025 Compliant

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

This 6061 Alloy O Soft Temper Aluminum Sheet features a thickness of 0.0100 inches, ideal for various industrial applications. Manufactured with precision according to ASTM-B-209 and AMS-4025 standards, it offers exceptional durability and flexibility. With a maximum tensile strength of 22,000 psi and a maximum yield strength of 12,000 psi, this aluminum sheet ensures reliable performance. Its chemical composition meets stringent industry requirements, including maximum manganese, silicon, and magnesium compositions.

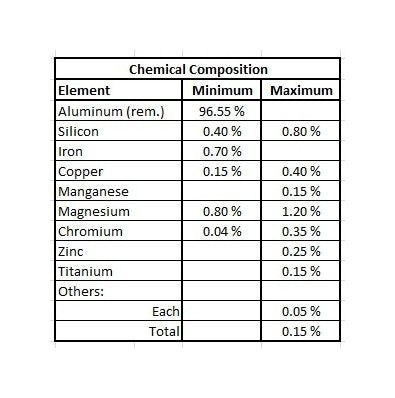

Product Specifications

Composition Maximum Chromium Composition

0.35 %

Composition Maximum Copper Composition

0.40 %

Composition Maximum Magnesium Composition

1.20 %

Composition Maximum Manganese Composition

0.15 %

Composition Maximum Others Composition Each

0.05 %

Composition Maximum Others Composition Total

0.15 %

Composition Maximum Silicon Composition

0.80 %

Composition Maximum Titanium Composition

0.15 %

Composition Maximum Zinc Composition

0.25 %

Physical Properties Maximum Tensile Strength

22,000 psi

Physical Properties Maximum Yield Strength

12,000 psi

Physical Properties Minimum Elongation 0008 To 0009 Inch In Thic

12 %

Physical Properties Minimum Elongation 0010 To 0020 Inch In Thic

14 %

Physical Properties Minimum Elongation 0021 To 0128 Inch In Thic

16 %

Specifications Alloy

6061 Aluminum Alloy

Specifications Ams Standard

AMS-4025

Specifications Astm Steel Standard

ASTM-B-209

Specifications Length

Custom

Specifications Temper

"O" Soft Temper

Specifications Thickness

0.0100 in

Specifications Thickness Tolerance

0.0008 in

Specifications Width

Custom
