6061-T6 Aluminum Rod Ends
6061-T6 Aluminum Rod Ends
SKU:ROD-5ba9bc
High-performance 6061-T6 Aluminum Rod Ends for automotive and industrial use. Precision-engineered with 52100 Bearing Steel ball material, HRC58-64 heat treatment, and hard chrome plating.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
6061-T6 Aluminum Rod Ends
$24.99
Quantity: 1
Claim Your Seller Account
6061-T6 Aluminum Rod Ends
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6061-T6 Aluminum Rod Ends by Monroe are precision-engineered for durability and versatility. Featuring 52100 Bearing Steel ball material with HRC58-64 heat treatment and hard chrome plated for enhanced performance. Available in female and right variants, these rod ends meet industry standards for automotive, industrial machinery, and more. With dimensions meeting precise specifications and a static radial load capacity of 2,363 lbs, these rod ends offer reliability and longevity in various applications.

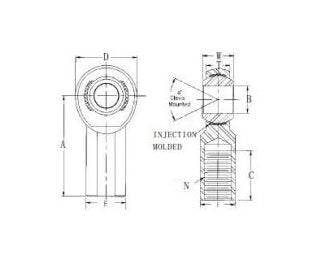

Product Specifications
Specifications Approx Weight
0.04 lbs
Specifications A Length 0015 0015
1.312 in
Specifications A Mis Angle Ref
16
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black As Standard
Specifications B Dia 00025 00005
0.2500 in
Specifications C Length 0062 0031
0.750 in
Specifications D Dia 0010 0010
0.750 in
Specifications N Thread Unf 3a
1/4-28
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RALF-4
Specifications Static Radial Load
2,363 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.375 in
