6061-T6 Aluminum Rod Ends
6061-T6 Aluminum Rod Ends
SKU:ROD-5ab962
High-performance 6061-T6 Aluminum Rod Ends for automotive, industrial, and multi-industry use. Precision-engineered for durability and optimal functionality.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
6061-T6 Aluminum Rod Ends
$24.99
Quantity: 1
Claim Your Seller Account
6061-T6 Aluminum Rod Ends
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6061-T6 Aluminum Rod Ends are precision-engineered components designed for versatile applications in automotive vehicles, industrial machines, and various industries. Featuring a 52100 Bearing Steel ball material with Heat Treatment HRC58-64 and a hard chrome plated finish, these rod ends are available in Male/Female and Left/Right variants to accommodate diverse installation requirements. With precise dimensions meeting industry standards, including a Static Radial Load capacity of 4,512 lbs and a lightweight construction of 0.09 lbs, these rod ends deliver exceptional performance and durability.

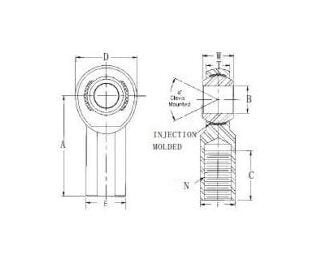

Product Specifications
Specifications Approx Weight
0.09 lbs
Specifications A Length 0015 0015
1.625 in
Specifications A Mis Angle Ref
14
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black As Standard
Specifications B Dia 00025 00005
0.3125 in
Specifications C Length 0062 0031
0.937 in
Specifications D Dia 0010 0010
1.000 in
Specifications N Thread Unf 3a
3/8-24
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RALF-56
Specifications Static Radial Load
4,512 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.437 in
