6061-T6 Aluminum Rod Ends
6061-T6 Aluminum Rod Ends
SKU:ROD-6ff1b7
Premium 6061-T6 Aluminum Rod Ends for automotive and industrial use. High-quality materials & precise design for optimal performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6061-T6 Aluminum Rod Ends
$29.99
Quantity: 1
Claim Your Seller Account
6061-T6 Aluminum Rod Ends
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior durability and performance with our 6061-T6 Aluminum Rod Ends. Crafted with precision, these rod ends feature high-quality 52100 Bearing Steel balls, heat-treated for optimum strength. The body material is 6061-T6 Aluminum, anodized in red and black for corrosion resistance. With precise dimensions and left-hand thread type, these rod ends are ideal for automotive, industrial, and various other applications.

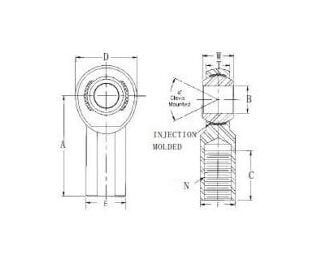

Product Specifications
Specifications Approx Weight
0.04 lbs
Specifications A Length 0015 0015
1.312 in
Specifications A Mis Angle Ref
16
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black As Standard
Specifications B Dia 00025 00005
0.2500 in
Specifications C Length 0062 0031
0.750 in
Specifications D Dia 0010 0010
0.750 in
Specifications N Thread Unf 3a
1/4-28
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
REAF-4
Specifications Static Radial Load
2,363 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.375 in
