6061-T6 Aluminum Rod Ends - Female Variant
6061-T6 Aluminum Rod Ends - Female Variant
SKU:ROD-0a3114
High-quality 6061-T6 Aluminum Rod Ends for automotive and industrial use. Chrome plated, left-hand thread, with static radial load of 2,780 lbs.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
6061-T6 Aluminum Rod Ends - Female Variant
$24.99
Quantity: 1
Claim Your Seller Account
6061-T6 Aluminum Rod Ends - Female Variant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive or industrial machinery with our high-quality 6061-T6 aluminum rod ends. Featuring 52100 bearing steel balls, heat treated for durability and chrome plated for smooth operation. Designed to meet strict industry standards, with precise dimensions and a static radial load capacity of 2,780 lbs. Our rod ends are versatile, with left-hand thread and nylon race material, ensuring reliable performance in diverse applications.

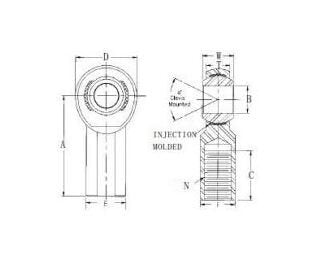

Product Specifications
Specifications Approx Weight
0.06 lbs
Specifications A Length 0015 0015
1.375 in
Specifications A Mis Angle Ref
14
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black As Standard
Specifications B Dia 00025 00005
0.3125 in
Specifications C Length 0062 0031
0.750 in
Specifications D Dia 0010 0010
0.875 in
Specifications N Thread Unf 3a
5/16-24
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
REAF-5
Specifications Static Radial Load
2,780 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.437 in
