6061-T6 Aluminum Rod Ends - Precision Female Thread, Chrome Plated
6061-T6 Aluminum Rod Ends - Precision Female Thread, Chrome Plated
SKU:ROD-ef0ed6
Premium 6061-T6 Aluminum Rod Ends with Precision Female Thread. High-strength, durable design for automotive & industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6061-T6 Aluminum Rod Ends - Precision Female Thread, Chrome Plated
$29.99
Quantity: 1
Claim Your Seller Account
6061-T6 Aluminum Rod Ends - Precision Female Thread, Chrome Plated
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive and industrial applications with our high-quality Aluminum Rod Ends made from 6061-T6 aluminum body and 52100 Bearing Steel ball material. With precision engineering and heat-treated chrome plated finish, these rod ends offer superior strength and durability. Designed for UNF 3A threaded ends, these rod ends provide reliable performance under heavy loads and Mis. Angle Ref 14. Compliant with industry standards and Prop 65 regulation.

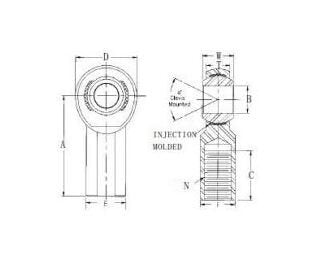

Product Specifications
Specifications Approx Weight
0.06 lbs
Specifications A Length 0015 0015
1.375 in
Specifications A Mis Angle Ref
14
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black As Standard
Specifications B Dia 00025 00005
0.3125 in
Specifications C Length 0062 0031
0.750 in
Specifications D Dia 0010 0010
0.875 in
Specifications N Thread Unf 3a
5/16-24
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RALF-5
Specifications Static Radial Load
2,780 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.437 in
