6061-T6 Aluminum Rod Ends with 52100 Bearing Steel Ball
6061-T6 Aluminum Rod Ends with 52100 Bearing Steel Ball
SKU:ROD-08c378
High-performance Aluminum Rod Ends for automotive and industrial use. 6061-T6 body, 52100 Bearing Steel ball, UNF 3A thread, 1,453 lbs load capacity. Prop 65 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6061-T6 Aluminum Rod Ends with 52100 Bearing Steel Ball
$29.99
Quantity: 1
Claim Your Seller Account
6061-T6 Aluminum Rod Ends with 52100 Bearing Steel Ball
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive and industrial machinery with our high-performance Aluminum Rod Ends. Crafted with 6061-T6 Aluminum body and 52100 Bearing Steel ball, heat-treated for durability. Available in Male/Female and Left/Right variants. Precisely engineered to meet UNF 3A thread requirements with a static radial load capacity of 1,453 lbs. Stay compliant with Prop 65 warning. Ideal for a variety of applications in multiple industries.

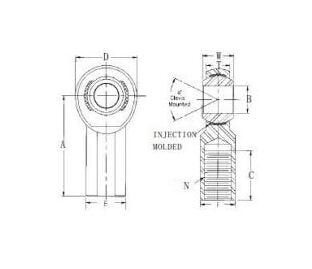

Product Specifications
Specifications Approx Weight
0.03 lbs
Specifications A Length 0015 0015
1.062 in
Specifications A Mis Angle Ref
13
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black As Standard
Specifications B Dia 00025 00005
0.1900 in
Specifications C Length 0062 0031
0.562 in
Specifications D Dia 0010 0010
0.625 in
Specifications N Thread Unf 3a
10-32
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
REAF-3
Specifications Static Radial Load
1,453 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.312 in
