60m Anaconda HD Pipe Camera with Dual View/Pan and Tilt
60m Anaconda HD Pipe Camera with Dual View/Pan and Tilt
SKU:PIP-8d73c2
Explore pipes with precision using the 60m Anaconda HD Pipe Camera's dual view/pan and tilt heads for versatile inspections.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
60m Anaconda HD Pipe Camera with Dual View/Pan and Tilt
$5,499.99
Quantity: 1
Claim Your Seller Account
60m Anaconda HD Pipe Camera with Dual View/Pan and Tilt
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

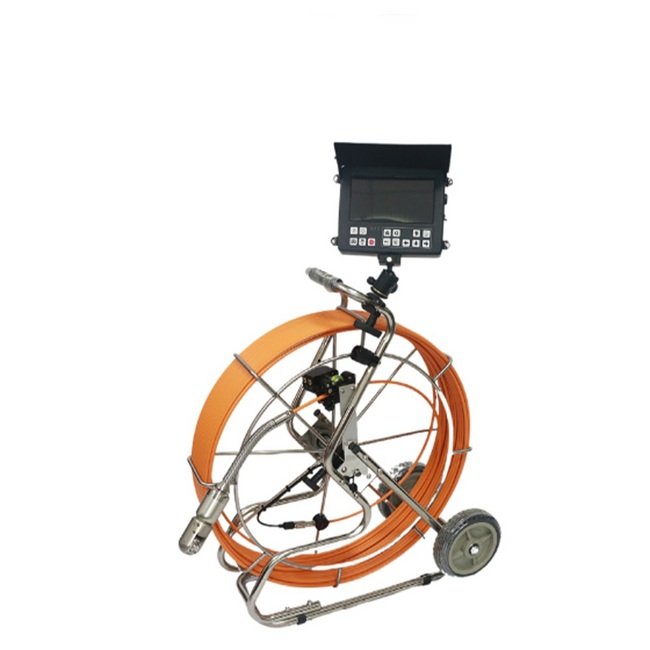

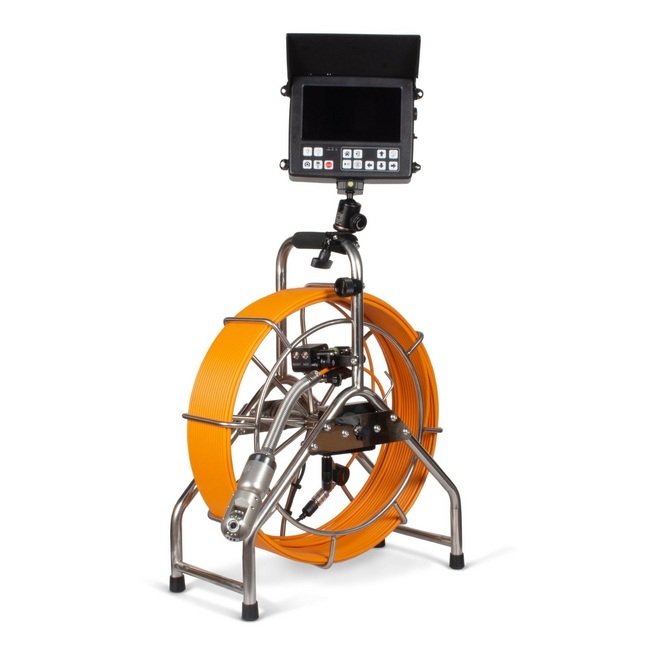

The 60m Anaconda HD Pipe Camera is a robust and versatile solution for inspecting pipelines, sewers, drains, ducts, manholes, and more. Featuring interchangeable dual view/pan and tilt camera heads, steel frame, waterproof design (IP68), bright LED illumination, and 512Hz Sonde for underground location. This modular system, with an 8-inch IPS LCD monitor and sturdy push cable, ensures precise inspections in various industrial applications.
Product Specifications
Additional Information

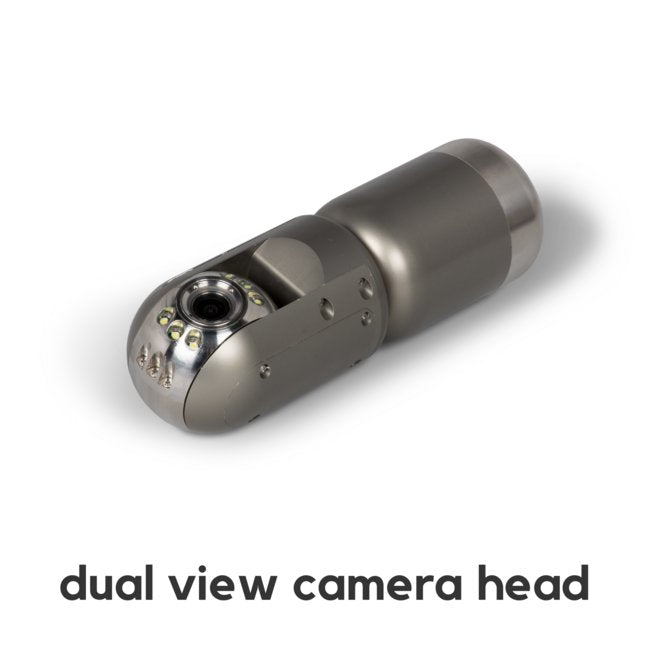

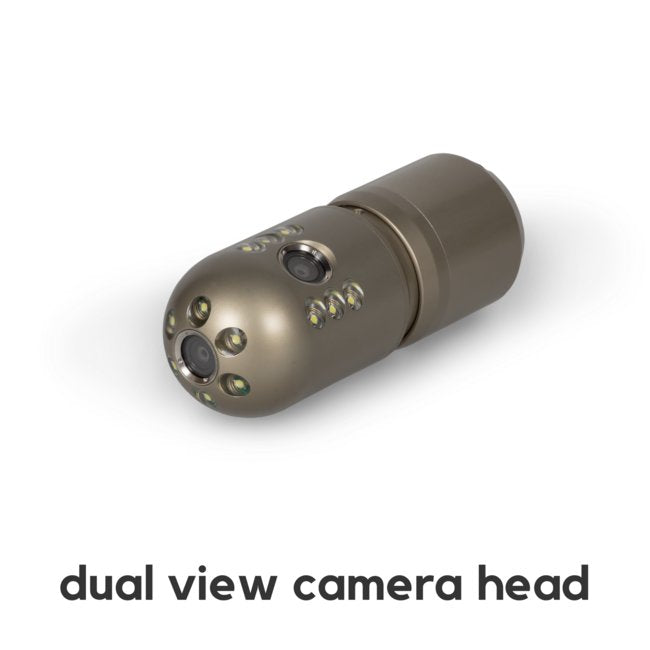

The ANACONDA HD Pipe Camera is a versatile and affordable unit for inspecting pipes. It is a modular design and can be equipped with either a pan-and-tilt or dual-view camera head, making it ideal for inspecting sewers, drains, ducts, manholes, culverts, wells, and tanks. The camera's image sensor is protected by a scratch-resistant sapphire lens; the head is machined out of durable aluminum and stainless steel. It has a waterproof rating of IP68, and both camera heads include a 512Hz Sonde for quick underground location. These interchangeable camera heads are perfect for situations that require a different camera head due to damage or contamination. The dual-view camera head has a smaller diameter and built-in front and side view camera sensors, allowing you to pan around 360 degrees to capture every detail of the inspection area. Six extra-bright LEDs are incorporated into both the front and side views. The pan-and-tilt camera head is slightly larger and provides a more extensive viewing range. In the front, it features six extra-bright LEDs for intense illumination. The waterproof fiberglass push cable, which comes in a length of 60 meters (197 feet), has a diameter of 7mm (0.27 inches). The DVR box is weatherproof and comes with an 8.0-inch color HD IPS LSD screen, a rechargeable battery, a USB stick, a wireless keyboard, and a microphone. Sturdy footage counter tracts the cable length and displays it on the screen. A centering bracket/skid is included to keep the camera above the ground and allow for panning or tilting. For inspecting larger pipes, a special expanding steel roller skid is available. Overall, the ANACONDA HD Pipe Camera is a sturdy and quality system that is perfect for inspecting well casings, water mains, road drainage systems, ducts, and pipelines.
Applications
Well Casing InspectionsPipeline InspectionsDrainage SurveysPlumbing and Sewer ApplicationsHeating, Ventilation, and Air Conditioning (HVAC) Duct InspectionsConstruction Surveys Water Mains Inspections
Features
Mechanical BrakeIndustrial Grade Steel FrameSuperbright LED Illumination
Technical Specs Battery Operated
Yes
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Camera Types
Dual View/Pan and Tilt
Technical Specs Footage Counter
Yes
Technical Specs Head Diameter
1.77 in | 2 in | 45 mm | 50 mm
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Heads
Yes
Technical Specs Length
196.8 ft | 60 m
Technical Specs Monitor Size
8 in
Technical Specs Monitor Type
In-Plane Switching Liquid Crystal Display (IPS LCD)
Technical Specs Note
Available for Rent
Technical Specs Sonde Frequency
Yes
Technical Specs Text Generator
Yes
Technical Specs Waterproof
Ingress Protection (IP68)
