61 Series Nylon Rivet Chassis Mount for Circuit Board Support

Name: 61 Series Nylon Rivet Chassis Mount for Circuit Board Support
Brand: All Electronics Hardware
SKU: 01C-a82710
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-a82710

Secure and releaseable circuit board support with Nylon 66 material. RoHS compliant, ASTM D 4066, PA111 standards. Temp range: -40 to 185F (-40 to 85C).

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

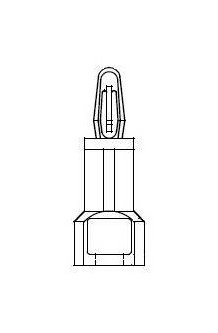

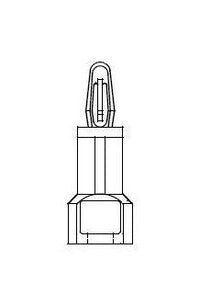

Enhance your PCB assembly with the 61 Series Nylon Rivet Chassis Mount. This locking circuit board support securely mounts to the chassis, providing stability and releaseability. Made of Nylon 66 UL94V-2 material (UL94V-0 option available), this support is RoHS compliant and meets ASTM D 4066 and PA111 standards. With a temperature range of -40 to 185F (-40 to 85C) and compatible with AEH Snap Rivets (sold separately), this product ensures reliable performance within a chassis thickness range of .026 to .341 inches (0.7-8.7mm).

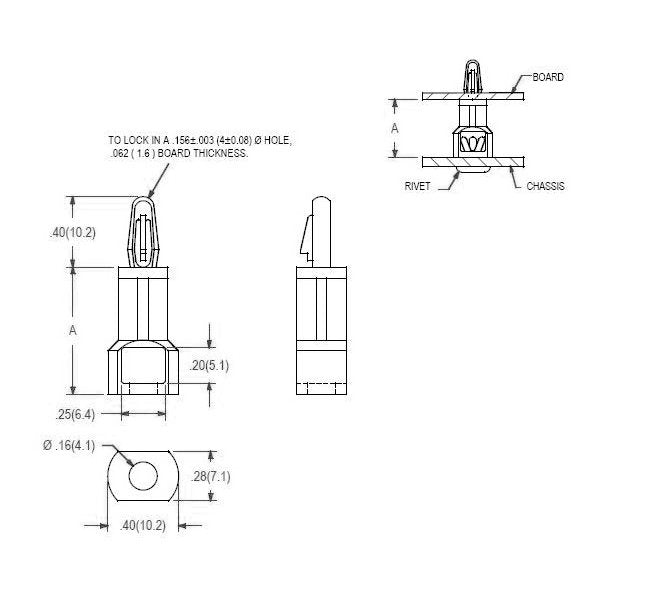

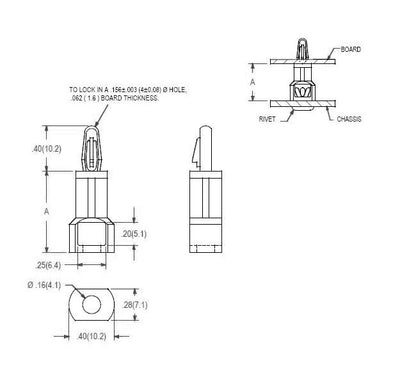

Product Specifications

Specifications Chassis Thickness Range Available Min Max

.026 - .341 (.7-8.7) inches (mm)

Specifications Dim A

.750 (19.1) inches (mm)

Specifications Use Aeh Snap Rivet06 01 Series Sold Separately

Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm)
