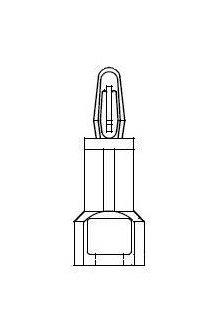

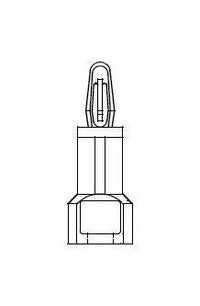

61 Series Plastic Rivet Chassis Mount
61 Series Plastic Rivet Chassis Mount
SKU:01C-bfaac4
Secure circuit boards with ease using the 61 Series Plastic Rivet Chassis Mount. Durable, releaseable, and compliant with ASTM standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
61 Series Plastic Rivet Chassis Mount
$24.99
Quantity: 1
Claim Your Seller Account
61 Series Plastic Rivet Chassis Mount
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

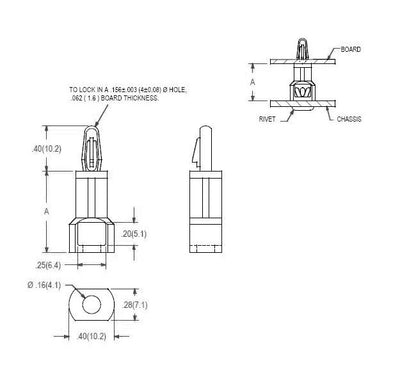

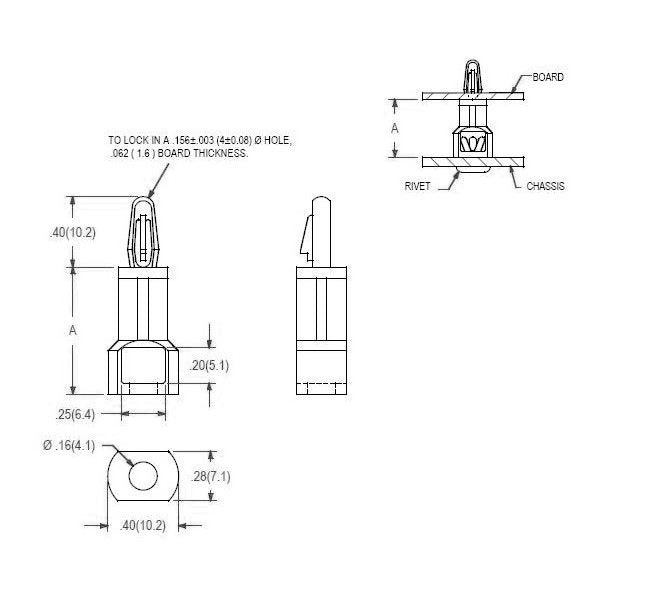

The 61 Series Plastic Rivet Chassis Mount is a durable and reliable solution for securing circuit boards to chassis. Designed for easy installation and removal, this PCB support features a .156 board hole size and is compatible with AEH 06-01-Series snap rivets. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066 and PA111 standards, ensuring high-quality performance. With a temperature range of -40 to 185F, this chassis mount offers versatility for various applications.
Product Specifications
Specifications Chassis Thickness Range Available Min Max
.026 - .341 (.7-8.7) inches (mm)
Specifications Dim A
.500 (12.7) inches (mm)
Specifications Use Aeh Snap Rivet06 01 Series Sold Separately
Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm)
