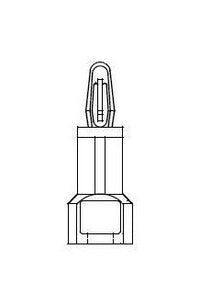

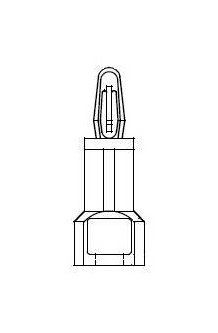

61 Series Plastic Rivet Chassis Mount - Circuit Board Support
61 Series Plastic Rivet Chassis Mount - Circuit Board Support
SKU:01C-76ab5a
Ensure circuit board stability with our 61 Series Plastic Rivet Chassis Mount, designed for .156 board holes. Temperature range: -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
61 Series Plastic Rivet Chassis Mount - Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
61 Series Plastic Rivet Chassis Mount - Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

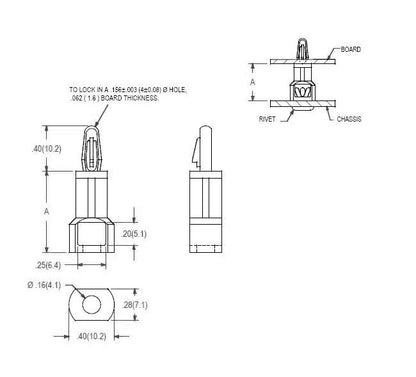

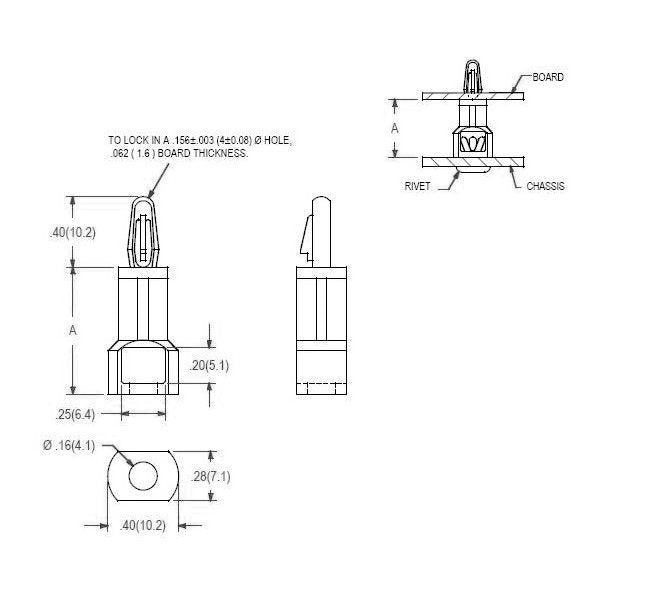

Enhance circuit board stability with our 61 Series Plastic Rivet Chassis Mount. Designed for .156 board holes, this releaseable support features a Nylon 66 UL94V-2 construction, ensuring durability and safety. With a temperature range of -40 to 185F, it offers reliable performance under various conditions. Compatible with AEH Snap Rivet 06-01 Series, this mount is ideal for PCBs with a thickness of .062 and chassis thickness ranging from .026 to .341 inches. ASTM and RoHS compliant, this product guarantees quality and regulatory adherence.
Product Specifications
Specifications Chassis Thickness Range Available Min Max
.026 - .341 (.7-8.7) inches (mm)
Specifications Dim A
.375 (9.5) inches (mm)
Specifications Use Aeh Snap Rivet06 01 Series Sold Separately
Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm)
