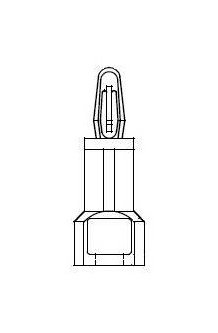

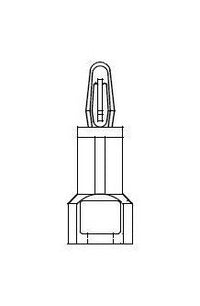

61 Series Plastic Rivet Chassis Mount - Circuit Board Support
61 Series Plastic Rivet Chassis Mount - Circuit Board Support
SKU:01C-f1a87b
Durable Plastic Rivet Chassis Mount for secure circuit board support. Snap Rivet Locking mechanism, versatile chassis thickness range. Meets ASTM, RoHS standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
61 Series Plastic Rivet Chassis Mount - Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
61 Series Plastic Rivet Chassis Mount - Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 61 Series Plastic Rivet Chassis Mount is a durable and secure circuit board support solution designed for easy installation on chassis. This PCB support features a Snap Rivet Locking mechanism for quick release, suitable for AEH 06-01-Series PCBs with a .062 thickness. The chassis thickness range accommodates .026 to .341 inches, offering versatility. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), this support meets ASTM D 4066, PA111 standards and is RoHS Compliant. With a temperature range of -40 to 185F (-40 to 85C), it ensures reliable performance in various environments.
Product Specifications

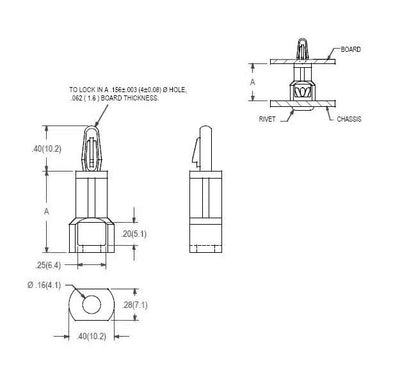

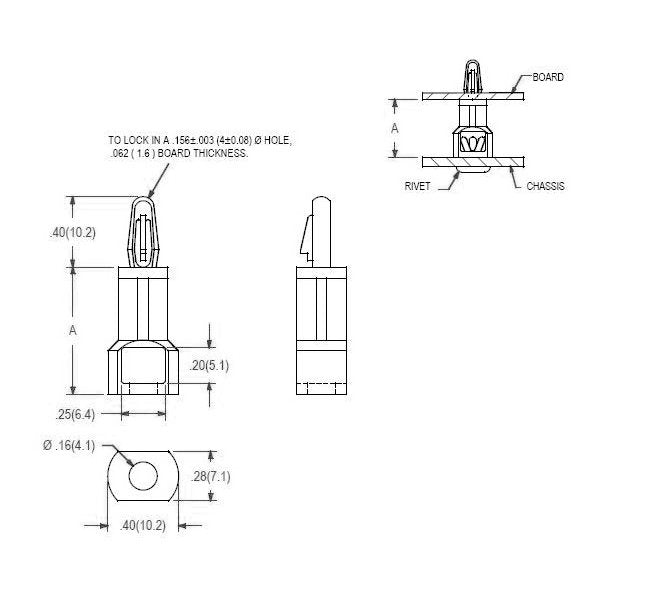

Specifications Chassis Thickness Range Available Min Max
.026 - .341 (.7-8.7) inches (mm)
Specifications Dim A
1.0 (25.4) inches (mm)
Specifications Use Aeh Snap Rivet06 01 Series Sold Separately
Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm)
