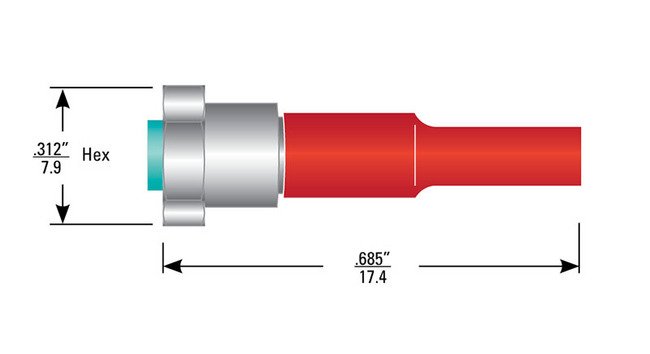

610 Series Shielded Hex Coupling Plug Kit
610 Series Shielded Hex Coupling Plug Kit
SKU:HIG-e86496
Enhance signal integrity and reliability with the 610 Series Shielded Hex Coupling Plug Kit, ideal for high voltage applications. Ensure secure connections and prevent cross-mating in complex setups.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
610 Series Shielded Hex Coupling Plug Kit
$49.99
Quantity: 1
Claim Your Seller Account
610 Series Shielded Hex Coupling Plug Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 610 Series Shielded Hex Coupling Plug Kit is designed for high voltage applications where reliability and durability are paramount. Featuring a larger coupling nut for secure mating operations and enhanced polarization to prevent cross-mating, this plug kit is recommended for airborne and multi-circuit setups. With an altitude seal that enables operation up to 70,000 ft. and a temperature range of -55° to +125°C, these cable assemblies ensure peak performance in challenging environments. Constructed with premium materials like stainless steel and BeCu contacts with gold finish, this plug kit guarantees superior conductivity and longevity.
Product Specifications
Body Properties Coupling Nut Finish
Passivated
Body Properties Coupling Nut Material
Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 610 receptacles only
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
610
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Shielded
